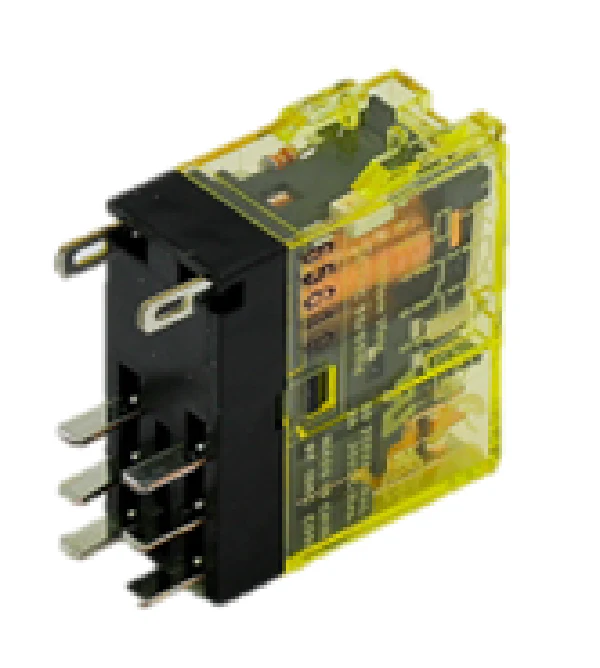

IDEC Relays RJ2S-CL-A24 Relay
The IDEC RJ2S-CL-A24 is a standard-setting DPDT slim power relay engineered for high-density control panels where rail space is at a premium. As a veteran-grade 24VAC plug-in relay, this unit features a compact 12.7mm width while maintaining a robust 8A contact rating. The RJ series utilizes a unique return spring structure, which significantly enhances mechanical durability and electrical conductivity in demanding HVACR and industrial automation environments. This Double-Pole Double-Throw relay includes a high-visibility bidirectional LED indicator, allowing for rapid status diagnostics from multiple angles in poorly lit cabinets. For contractors and technicians, the RJ2S-CL-A24 ensures long-term operational reliability with silver nickel contacts that provide stable switching performance for up to 30 million mechanical cycles. These blade terminal relays are fully compatible with SJ series sockets, facilitating quick replacement and secure wiring for motor control, sequence logic, and energy management systems.
Key Benefits
- High-Visibility Diagnostics: Integrated non-polarized LED indicator allows for immediate visual confirmation of coil energization.
- Compact Footprint: The 12.7mm slim housing maximizes DIN rail density without sacrificing 8-amp switching capacity.
- Enhanced Durability: Proprietary return spring design eliminates common mechanical weak points, extending the duty life in high-cycle applications.
- Industrial Compliance: UL recognized and CSA certified for industrial machine control and HVACR technical standards.
- Ease of Installation: Standard blade terminals provide a secure, low-resistance connection with compatible SJ sockets.
Common Questions
What is the maximum switching current for this DPDT relay?
The IDEC RJ2S-CL-A24 is rated for a maximum contact current of 8A at 250V AC or 30V DC, making it ideal for general-purpose power switching.
Does this unit include a protection diode?
This specific 24VAC model features a built-in LED for status indication, but it does not include a surge suppression diode, which is typically found on the DC coil variants of the RJ series.
Can I mount this relay without a socket?
While designed as a plug-in relay for use with SJ sockets for easy maintenance, the blade terminals are standard; however, socket mounting is the industry-recommended practice for HVACR control panels.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
