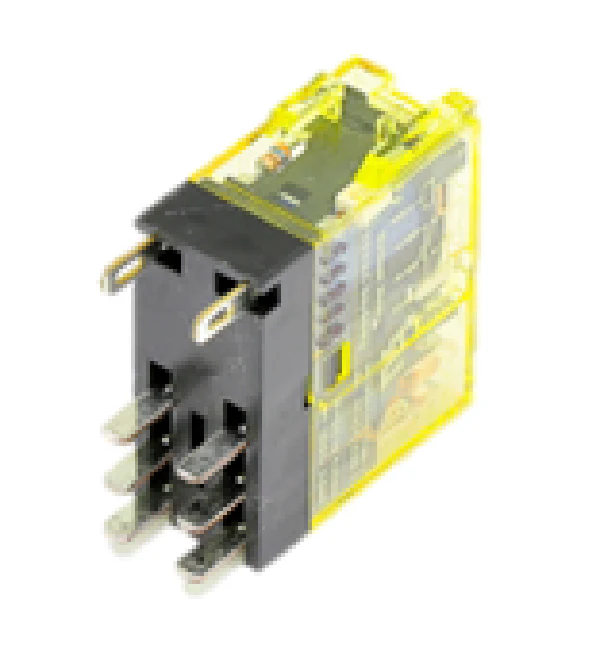

IDEC Relays RJ2S-CL-A120 Relay
The IDEC RJ2S-CL-A120 is a high-performance DPDT slim power relay engineered for high-density control panels and industrial HVACR applications. As part of the RJ Series, this relay features a compact 12.7mm width, allowing for significant space savings without compromising switching capacity. This model is equipped with 8A silver nickel (AgNi) alloy contacts, providing superior electrical conductivity and durability for resistive loads up to 250VAC. A key technical advantage is the unique light guide design, which integrates a non-polarized LED indicator for high-visibility status monitoring from multiple angles?essential for rapid troubleshooting in dark or crowded cabinets. The blade terminals ensure a secure, low-resistance connection when paired with SJ series sockets. Designed for rigorous professional use, the 120VAC coil and robust return spring structure contribute to an extended mechanical life of up to 30 million cycles, making it a reliable choice for industrial machine control and automation sequences.
Key Benefits for Contractors:- Space-Efficient Housing: The 12.7mm slim profile maximizes rail space in compact control panels.
- High-Visibility LED: Integrated green LED with a 360-degree light guide provides immediate visual feedback of coil energization.
- Reliable Switching: DPDT (2 Form C) configuration with 8A rated contacts handles dual-circuit logic with precision.
- Industrial Durability: Specialized return spring mechanism enhances mechanical reliability and conduction stability under high-vibration conditions.
- Versatile Mounting: Compatible with standard DIN rail sockets featuring screw or finger-safe terminals for flexible field installation.
- What is the maximum switching voltage for the RJ2S-CL-A120? This relay is rated for a maximum contact voltage of 250VAC or 30VDC, suitable for most HVACR control circuits.
- Can this relay be used in high-temperature environments? Yes, the RJ series is designed to operate within a wide temperature range of -40?C to 70?C (-40?F to 158?F).
- Which socket is recommended for this blade-style relay? For optimal performance and safety, use the IDEC SJ2S-05B screw terminal socket or the SJ2S-07LW finger-safe model.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $15.41
-65%$15.41
$5.39IDEC Relays RJ2S-CL-A120 Relay
