IDEC Relays RH2B-UTAC110-120V Relay

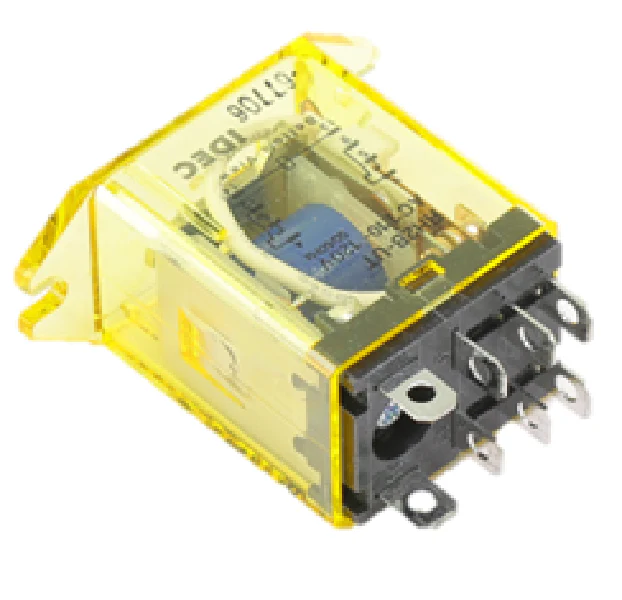

The IDEC RH2B-UTAC110-120V is a heavy-duty general-purpose midget relay engineered for high-capacity industrial switching within a compact footprint. Designed to save critical panel space without sacrificing performance, this double pole double throw (DPDT) power relay features a robust 10A contact rating, making it a reliable solution for HVACR control circuits and industrial automation. The 110-120V AC coil is optimized for standard North American control voltages, ensuring stable actuation across a wide operational range. Utilizing silver cadmium oxide (AgCdO) contacts, this unit effectively minimizes voltage arcing, extending the electrical life of the component under inductive loads. This specific model features blade terminals for secure electrical connection and an integrated top mounting bracket for direct flange installation, providing versatile mounting options for contractors. With a fast 20ms response time and broad temperature resilience from -30?C to +70?C, the RH series power relay provides the durability required for demanding mechanical environments.
Key Benefits- High Switching Capacity: Handles up to 10A in a miniature "midget" housing, perfect for motor control and solenoid actuation.
- AgCdO Contact Material: Silver cadmium oxide contacts reduce pitting and welding, ensuring reliable switching over thousands of cycles.
- Versatile Mounting: Integrated top bracket allows for secure surface mounting without the need for additional DIN rail sockets.
- Plug-in Compatibility: Standard 8-pin .187 blade terminals fit common industrial sockets when bracket mounting is not utilized.
- Industrial Standards: Fully compliant with UL, CSA, and CE certifications for global industrial safety and performance requirements.
What is the difference between the "U" and "UL" versions of the RH series?
The "U" in RH2B-UTAC110-120V indicates the basic midget series. Models with "UL" typically include an integrated LED indicator for visual coil status, whereas this "UT" model focuses on the top bracket mounting configuration.
How do I verify if the coil is energized without a built-in indicator?
Technicians should use a multimeter to check for 110-120V AC across the coil terminals or check the continuity of the NO/NC contacts to confirm the armature has successfully switched positions.
Can this relay replace a 3-pole or 4-pole RH series model?
No. This is a 2-pole (DPDT) configuration. While the footprint is similar, replacing a 3PDT or 4PDT unit with a DPDT relay will lead to circuit failure if all poles are currently being utilized for logic or load control.
