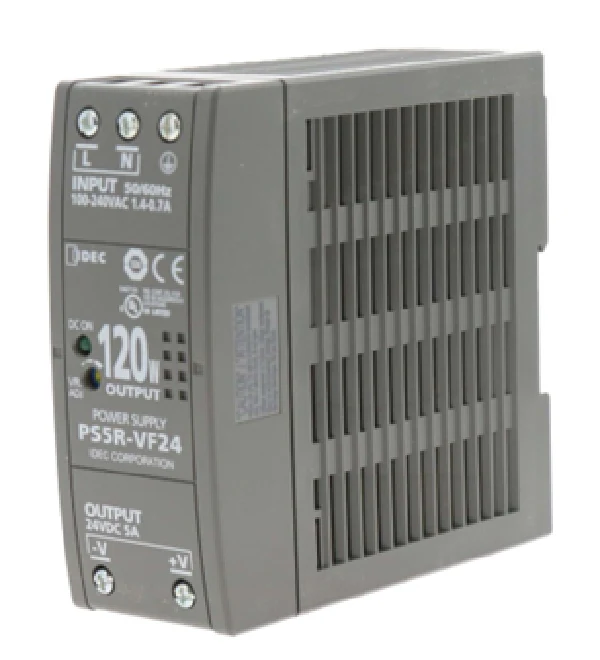

IDEC Relays PS5R-VF24 Power Supply
The IDEC PS5R-VF24 is a high-performance DIN rail power supply engineered for demanding industrial and HVACR control systems. This switching power supply features a universal 100-240Vac input voltage (85-264Vac / 100-370Vdc compatible) and delivers a stable 24Vdc output with a 5.0Amp rated current. Built for tight control panels, its compact 46mm width maximizes rail space without compromising performance. The 120W power supply utilizes an innovative SS terminal structure with spring-up screw terminals, allowing for rapid wiring of ring or fork connectors and significantly reducing installation time for contractors. With an operational efficiency designed to minimize thermal load and a wide operating temperature range from -25?C to +65?C, it ensures reliable DC power conversion in environments where temperature fluctuations are common. It is further certified for Class I Division 2 hazardous locations and compliant with SEMI F47 sag immunity, making it an essential component for sensitive automated systems.
Key Benefits- Space-Efficient Design: Slim-line 46mm chassis allows for high-density mounting in congested electrical cabinets.
- Versatile Mounting: Supports installation in six different directions, providing flexibility for unique hardware orientations.
- Advanced Protection: Features integrated overcurrent protection with auto-reset and fused inputs to safeguard downstream electronics.
- Maintenance-Free Reliability: High MTBF ratings and finger-safe IP20 terminals ensure long-term stability and technician safety.
Can the output voltage be adjusted for long wire runs?
Yes, the unit typically includes a front-facing V.ADJ potentiometer, allowing the 24Vdc output to be fine-tuned (usually ?10%) to compensate for voltage drops in extended field wiring.
Does this power supply require derating at high temperatures?
While the 120W output capacity is robust, performance should be cross-referenced with the thermal derating curve in the technical datasheet if operating in ambient temperatures consistently exceeding 50?C.
Is it compatible with DC input sources?
Yes, this model functions as an AC/DC converter and can accept a DC input range of 100-370Vdc, making it suitable for specialized backup or alternative energy circuits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
