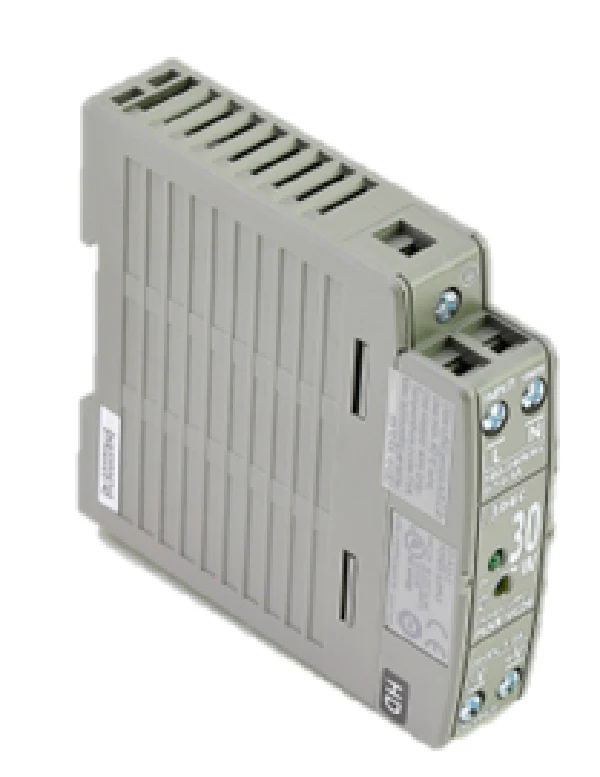

IDEC Relays PS5R-VC24 Power Supply
The IDEC PS5R-VC24 is a slim-line DIN rail power supply designed for high-density HVACR control panels and automation systems. This 30W switching power supply handles a universal input range of 100-240V AC, delivering a stable 24V DC output voltage at a 1.3A rated current. Engineered with a compact footprint to save rail space, it features high efficiency and a wide operating temperature range, making it ideal for standard industrial environments. The unit includes spring-up screw terminals for secure wiring and a DC low LED indicator for immediate visual troubleshooting. Its UL 508 listing and Class 2 output compliance ensure it meets NEC requirements for control circuits. This robust AC/DC converter is built for continuous duty, providing reliable vibration resistance and surge protection for sensitive PLC and sensor loads in the field.
- Space-Saving Design: Slim profile allows for maximizing control cabinet real estate without compromising thermal performance.
- Universal Input Compatibility: Accepts wide-ranging voltages, reducing stocking requirements for various industrial power supply applications.
- Simplified Installation: Integrated DIN rail clip and accessible terminal blocks streamline mounting for HVAC contractors.
- Reliable Regulation: Low ripple and noise characteristics protect sensitive DC control systems from electromagnetic interference.
What are the mounting options for the PS5R-VC24?
This unit is specifically designed for 35mm DIN rail mounting, though optional brackets are often available for direct surface mounting if the application requires a fixed layout.
Can this power supply handle inductive loads?
Yes, the 1.3 Amp output is capable of driving 24V DC solenoids, relays, and contactors, provided the total inrush current does not exceed the unit's peak capacity.
How do I verify the output is active during troubleshooting?
The PS5R-VC24 features an integrated LED indicator that illuminates when the DC output is healthy, allowing technicians to verify line and load status at a glance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
