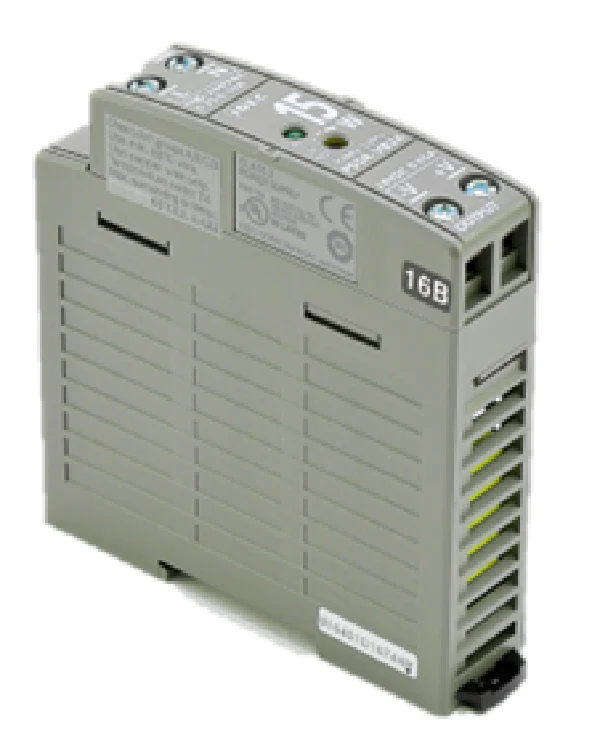

IDEC Relays PS5R-VB24 Power Supply
Reliable control power is the backbone of any automation system, and the IDEC PS5R-VB24 delivers industrial-grade stability. This DIN rail mount power supply is engineered for heavy-duty HVACR and industrial environments, providing a steady 24VDC output from a universal 100-240VAC input. With its 15W output capacity and 0.65 Amp rated current, it is the standard choice for powering PLCs, sensors, and small control circuits where panel space is at a premium. The slim 22.5mm profile ensures maximum density, while the fingersafe screw terminals allow for quick, secure wiring with standard ring or fork connectors. Designed for versatile installation, this switching power supply supports mounting in six different orientations without compromising its high efficiency or thermal performance.
- High-Efficiency Performance: Minimizes heat dissipation within the enclosure, extending the life of adjacent sensitive electronics.
- Universal Input Compatibility: Accepts 85-264VAC or 100-370VDC, making it suitable for global deployment and varying power conditions.
- Compact Form Factor: The ultra-slim 22.5mm width saves critical DIN rail space in crowded control panels.
- Versatile Mounting: Can be installed in six different directions and supports direct surface mounting with optional brackets.
- Industrial Certifications: Meets UL508, UL1310 Class 2, and Class 1 Div 2 standards for hazardous locations.
What is the maximum current output of the PS5R-VB24?
This model provides a constant 0.65 Amp at 24VDC, totaling a 15W capacity. If your load exceeds this, the built-in overcurrent protection will automatically reset once the fault is cleared.
Can this power supply be used in high-temperature environments?
Yes, the PS5R-VB24 features an expanded operating temperature range and is designed for reliable performance in industrial cabinets, provided there is adequate airflow through the ventilation slots.
Does this unit support DC input?
Affirmative. While primarily used with AC, it accepts a 100-370VDC input range, offering flexibility for specialized DC control systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
IDEC Relays PS5R-VB24 Power Supply
Reliable control power is the backbone of any automation system, and the IDEC PS5R-VB24 delivers industrial-grade stability. This DIN rail mount power supply is engineered for heavy-duty HVACR and industrial environments, providing a steady 24VDC output from a universal 100-240VAC input. With its 15W output capacity and 0.65 Amp rated current, it is the standard choice for powering PLCs, sensors, and small control circuits where panel space is at a premium. The slim 22.5mm profile ensures maximum density, while the fingersafe screw terminals allow for quick, secure wiring with standard ring or fork connectors. Designed for versatile installation, this switching power supply supports mounting in six different orientations without compromising its high efficiency or thermal performance.
- High-Efficiency Performance: Minimizes heat dissipation within the enclosure, extending the life of adjacent sensitive electronics.
- Universal Input Compatibility: Accepts 85-264VAC or 100-370VDC, making it suitable for global deployment and varying power conditions.
- Compact Form Factor: The ultra-slim 22.5mm width saves critical DIN rail space in crowded control panels.
- Versatile Mounting: Can be installed in six different directions and supports direct surface mounting with optional brackets.
- Industrial Certifications: Meets UL508, UL1310 Class 2, and Class 1 Div 2 standards for hazardous locations.
What is the maximum current output of the PS5R-VB24?
This model provides a constant 0.65 Amp at 24VDC, totaling a 15W capacity. If your load exceeds this, the built-in overcurrent protection will automatically reset once the fault is cleared.
Can this power supply be used in high-temperature environments?
Yes, the PS5R-VB24 features an expanded operating temperature range and is designed for reliable performance in industrial cabinets, provided there is adequate airflow through the ventilation slots.
Does this unit support DC input?
Affirmative. While primarily used with AC, it accepts a 100-370VDC input range, offering flexibility for specialized DC control systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
