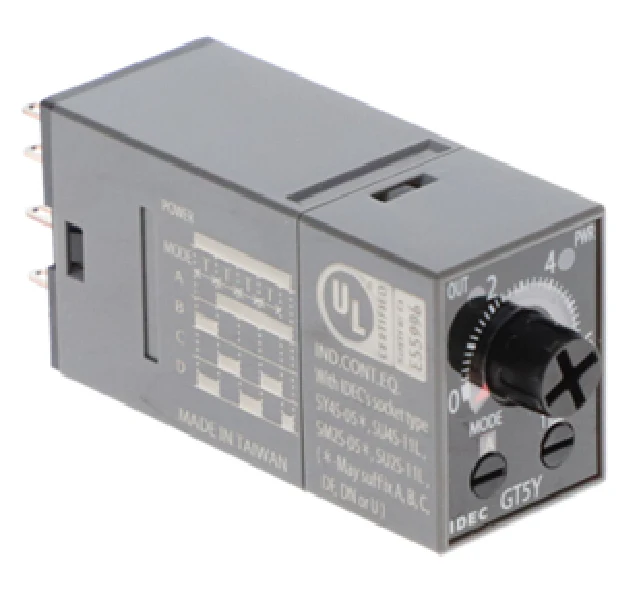

IDEC Relays GT5Y-2SN6A200 Relay
The IDEC GT5Y-2SN6A200 is an industrial-grade ON-delay timer relay engineered for precise timing control in HVACR and automation panels. Supporting an operating voltage of 200-240V AC, this DPDT time delay relay features a 5A contact rating, making it ideal for managing motor starters, solenoid valves, and sequencing circuits. The "6A" suffix indicates a versatile analog adjustment dial with four selectable time ranges?6 seconds, 60 seconds, 6 minutes, and 60 minutes?allowing technicians to fine-tune operations with a repeat error of only ?0.2%. Built with a standard 8-pin blade plug-in configuration, it integrates seamlessly with SY4S-05 or SY4S-05C sockets, the same footprint used by the popular RY4S and RU series. This hardware ensures high reliability in demanding environments, featuring power-on and timing-out LED indicators for rapid visual diagnostics. Whether you are staging compressor startups or managing fan delays, the GT5Y provides the mechanical endurance and electrical precision required for professional field applications.
Key Benefits- Multiple Time Ranges: Switch between 6s, 60s, 6m, and 60m scales on a single unit to reduce inventory overhead.
- High Contact Capacity: 5A DPDT contacts handle resistive loads up to 220V AC, providing robust switching for control circuits.
- Universal Socket Compatibility: Uses the same 8-pin blade sockets as IDEC RU and RY4S series relays, simplifying retrofits and new installations.
- Visual Diagnostics: Dual LED indicators show both input power status and elapsed timing cycles for immediate troubleshooting.
- Fine Adjustment: Analog knob allows for screwdriver or hand adjustment to ensure exact on-delay timing parameters.
What is the difference between this and the GT5Y-4 series?
The GT5Y-2 models provide DPDT (2-pole) switching at 5A, while the GT5Y-4 models offer 4PDT (4-pole) switching but at a lower 3A rating. Choose the GT5Y-2 for higher current applications.
Can I use this relay with an SSR?
While possible, it is recommended to use mechanical contacts to supply power. If using a solid-state device, ensure the SSR dielectric strength is at least twice the power voltage to account for the capacitive load of the AC timer.
Does this unit require a specific mounting orientation?
No, but for high-vibration HVACR environments, it is highly recommended to use hold-down springs (such as the SFA-101) to keep the relay secure in its socket.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $49.79
-65%$49.79
$17.43IDEC Relays GT5Y-2SN6A200 Relay
