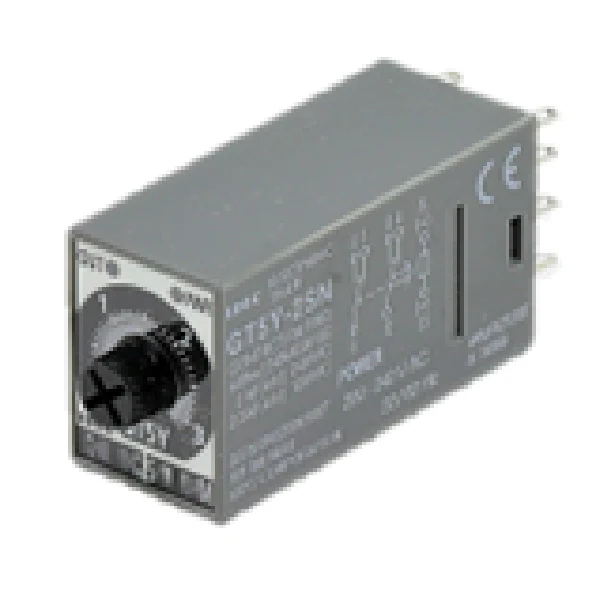

IDEC Relays GT5Y-2SN3A200 Timer
The IDEC GT5Y-2SN3A200 is an industrial-grade miniature on-delay timer engineered for high-density control panels and HVACR automation systems. This blade plug-in timer operates on a 200-240Vac input voltage and features a versatile DPDT contact configuration with a 5A resistive load rating. To ensure precise field adjustments, the unit provides four selectable timing ranges (0.1?3s, 0.5?30s, 3s?3m, and 30s?30m) accessible via a manual dial. Its 8-blade terminal design allows for seamless integration into standard sockets, such as the IDEC SY4S-05, maintaining compatibility with existing RU and RY4S series setups. Integrated dual LED indicators provide immediate visual feedback for power-on and timing-out status, reducing diagnostic time during routine maintenance. Built to handle industrial control logic, this analog timer relay offers a repeat error of only ?0.2% maximum, delivering the consistent performance required for motor soft-starts, sequencing, and delay-on-make applications in commercial climate environments.
Key Benefits- Versatile Timing Control: Features four field-selectable ranges up to 30 minutes, allowing a single IDEC GT5Y-2SN3A200 unit to serve multiple application needs.
- Compact Plug-in Design: The blade terminal footprint saves critical rail space and matches standard industrial relay sockets for fast replacement.
- High Accuracy: Minimal repeat error ensures predictable time delay relay performance in sensitive HVACR sequences.
- Status Monitoring: Dual LEDs provide clear verification of input power and output contact status to streamline troubleshooting.
- Robust Switching: DPDT contacts rated at 5A provide reliable switching for medium-duty loads and pilot circuits.
What socket is compatible with this timer?
The IDEC GT5Y-2SN3A200 is designed to fit standard 8-blade sockets, specifically the IDEC SY4S series (including SY4S-05 and SY4S-05C) or equivalent 4-pole miniature relay sockets.
Can the timing range be adjusted while the unit is powered?
Timing range selection should be performed with the power off to ensure the internal logic resets correctly to the new parameters, though the fine-tuning dial can be adjusted during operation.
Is this unit suitable for outdoor HVAC enclosures?
This on-delay timer is rated for an operating temperature range of -10 to +50?C and should be housed in an appropriately rated NEMA enclosure to protect against moisture and contaminants.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
