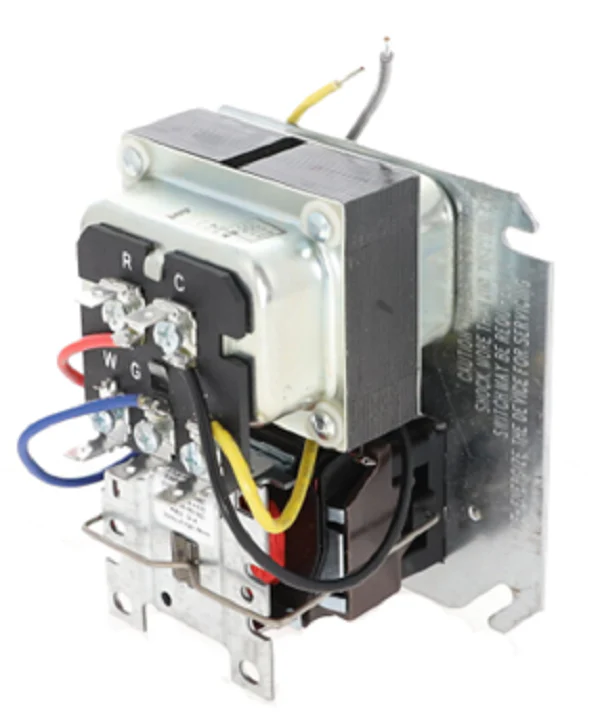

Hydrotherm BM-8783 Control Center
The Hydrotherm BM-8783 Control Center is a specialized HVAC systems module engineered for the precise coordination of operating signals within hydronic heating systems. As the central logic unit for residential and commercial boilers, this OEM replacement part monitors high-limit circuit inputs and sensor data to manage the ignition sequence and combustion timing. Integrated within the 120V AC circuit, it facilitates seamless communication between the boiler temperature control, gas valves, and thermostats. For technicians troubleshooting intermittent pilot issues or logic failures, replacing the boilers control board with a genuine BM-8783 ensures that the system maintains factory-spec safety parameters and operational efficiency. Its robust design is built to withstand the thermal demands of heavy-duty cycles, providing reliable hydronic boiler control and reducing the risk of downtime caused by signal drift or mechanical relay fatigue.
Key Benefits- Controls the critical ignition sequence and combustion timing to prevent delayed ignition or pilot outages.
- Maintains centralized logic for hydronic heating systems, ensuring all valves and sensors operate in the correct sequence.
- Engineered for 120V AC power supplies with a wide operating temperature range of 32?F to 220?F.
- Direct OEM replacement part for Hydrotherm units, ensuring perfect fitment and terminal alignment for faster field installation.
- Provides durable system diagnostics and monitoring for improved HVAC equipment longevity.
Is the Hydrotherm BM-8783 compatible with multi-zone setups?
Yes, this control center is designed to manage complex heating configurations, including systems with multiple zones, by coordinating inputs from various thermostats and zone valves.
What are the signs that a Hydrotherm boiler control board needs replacement?
Technicians often look for erratic ignition cycles, a "burnt odor" from the electrical components, or instances where the main burner fails to engage despite the pilot being established and the thermostat calling for heat.
Does this module include high-limit protection?
The BM-8783 Control Center integrates with aquastat limit controls to monitor safety thresholds and shut down the combustion process if the boiler exceeds its maximum safe operating temperature.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
