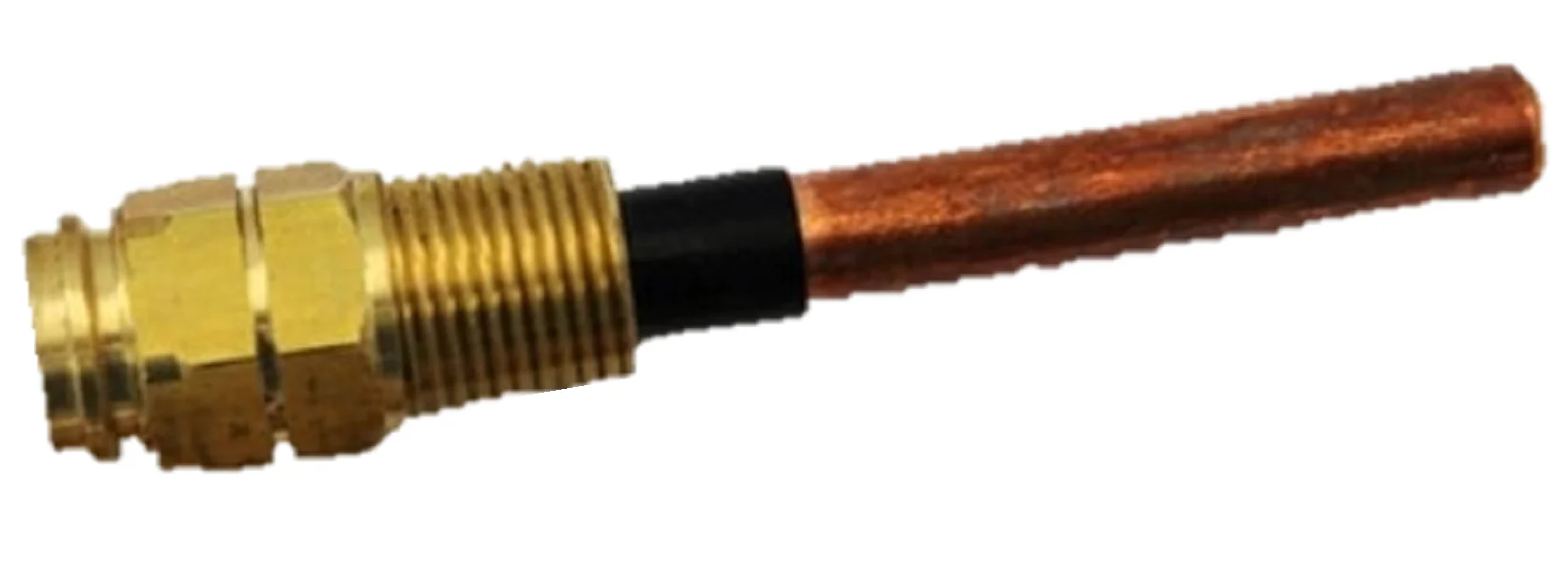

Hydrolevel EW221 Standard Electro-Well
The Hydrolevel EW221 Standard Electro-Well (Part Number 48-221) is an essential component for technicians looking to integrate low water cut-off (LWCO) protection into hydronic systems. Measuring with a 1/2" NPT connection and featuring a standard nut, this HydroStat Electro-Well is specifically designed to replace common immersion wells. When paired with a Fuel Smart HydroStat controller, the EW221 automatically activates the LWCO function, providing a critical safety layer that prevents burner operation during dangerous low-water conditions. Unlike a standard immersion well, the specialized construction of the 48-221 Electro-Well enables the internal sensor to detect the presence of water through metal-to-metal continuity, ensuring the LWCO Active LED illuminates on the control interface. This boiler safety probe is engineered for high-performance reliability in both cold start and tankless coil applications, maintaining system integrity without the need for additional wiring or complicated external kits.
Key Benefits- LWCO Activation: Automatically enables the low water cut-off feature on Hydrolevel HydroStat 3000 series and Fuel Smart HydroStat models.
- Universal 1/2" NPT Fit: Standardized threading allows for a direct immersion well replacement in most residential and commercial boiler castings.
- Safety Compliance: Protects the heat exchanger from thermal shock and dry-firing by interrupting the burner circuit immediately upon water loss.
- Simplified Maintenance: Designed for use without heat-conducting grease, preventing sensor fouling and ensuring accurate temperature signaling.
Is the Hydrolevel 48-221 compatible with regular Aquastats?
While it can physically fit a 1/2" NPT tapping, its specific function is to work with HydroStat controllers to enable the electronic low water cut-off. Standard temperature-only controls will not utilize the probe's electronic sensing capabilities.
Do I need to apply thermal grease to the EW221 sensor?
No. You must not use heat-conducting grease with the Electro-Well. The system relies on metal-to-metal contact between the sensor head and the well to complete the LWCO circuit; grease can act as an insulator and prevent the safety function from activating.
How do I test if the LWCO function is active?
Once installed on the Hydrolevel 48-221, the "LWCO Active" LED on the controller should be lit. You can verify the circuit by pressing and holding the "Test" button on the HydroStat; the burner should de-energize and the "Low Water" light should illuminate.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
