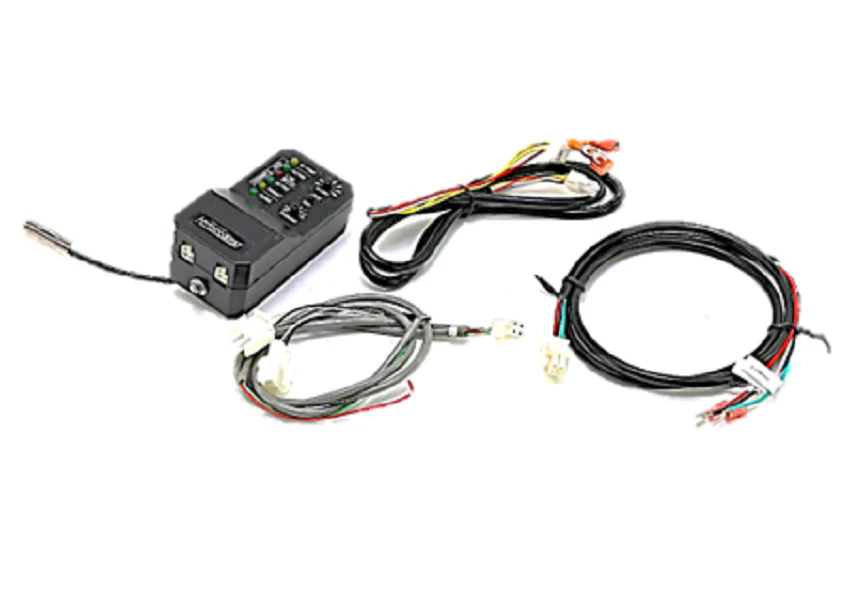

Hydrolevel 48-3000 Hydrostat
The Hydrolevel 48-3000 HydroStat is an essential 24V universal replacement gas boiler control designed for cold-start hydronic systems. This three-function boiler control streamlines operations by combining a high limit aquastat, fuel-saving boiler reset, and an optional low water cut-off (LWCO) into a single, compact unit. Engineered for 24Vac circuits, the Model 3000 features an adjustable high limit range of 100°F to 220°F and utilizes thermal targeting technology to optimize fuel consumption by adjusting boiler temperature based on heating demand. It includes a dedicated wire harness for seamless integration with transformer-type control centers and integrated boiler ignition boards. For technicians looking to protect equipment from dry-firing, the LWCO functionality is easily activated by installing the unit on a Hydrolevel Electro-Well. The 120V circulator contacts and 2.6VA power consumption make the Fuel Smart Hydrostat 3000 a robust solution for upgrading older, single-function controls while maintaining high-efficiency performance.
Key Benefits- Universal Compatibility: Replaces common single-function high-limit aquastats like the L4006A and L4080B, specifically designed for cold-start gas boilers.
- Fuel Efficiency: Integrated boiler reset uses thermal targeting to match system output with building load without requiring an outdoor sensor.
- Enhanced Safety: Built-in low water cut-off functionality (requires Electro-Well) protects against catastrophic dry-fire conditions.
- Simplified Setup: Features easy-to-use dial-type settings for high limit and economy adjustments, alongside LED status lights for quick troubleshooting.
- Smart Thermal Purge: Optional thermal pre-purge enhances efficiency by circulating existing heat from the boiler before firing the burner.
Is the Hydrolevel 3000 compatible with outdoor reset kits?
The Model 3000 provides fuel-saving reset via internal thermal targeting logic. While it performs internal reset functions effectively, it is generally not compatible with the OS-100 outdoor reset kit used by the Plus-series models.
What is required to use the Low Water Cut-Off (LWCO) feature?
To activate the LWCO, the control must be mounted on a Hydrolevel Electro-Well. When installed on a standard immersion well, the 48-3000 will provide temperature limit and boiler reset functions only.
How does the automatic differential work?
The unit features an automatic differential that adjusts based on the high limit and economy settings. If the economy feature is turned off, the control defaults to a fixed subtractive differential for standard high-limit operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
