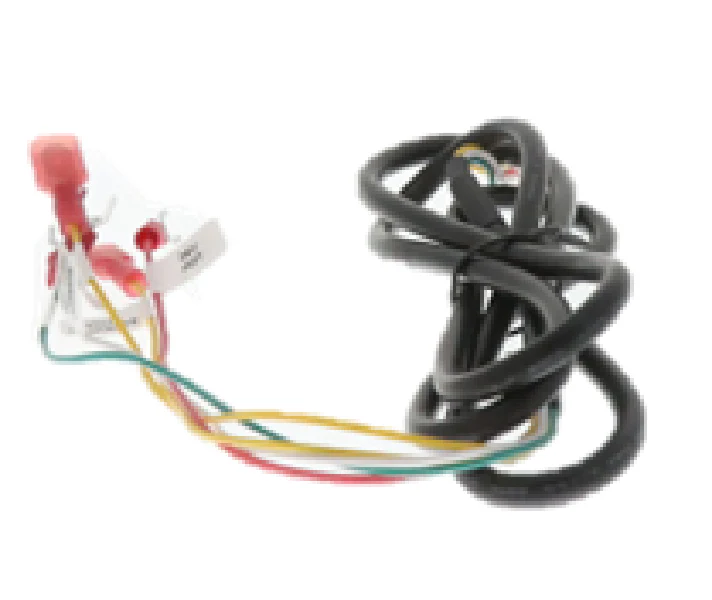

Hydrolevel 45-531-51 Wire Harness
Upgrading or repairing a Fuel Smart HydroStat 1100 requires precision-engineered components to maintain the integrity of the boiler\'s safety and control circuits. The Hydrolevel 45-531-51 Wire Harness is the OEM replacement wiring designed specifically for the Model 1100 series. As a veteran technician knows, using a standard wire harness that meets exact factory specifications is critical for preventing communication errors between the low water cut-off (LWCO) sensors and the primary control board. This harness facilitates the 24V signal path necessary for burner circuit integration and limit control functionality.
Constructed with high-temp insulation, this HVAC wiring assembly is built to withstand the high-ambient conditions of a residential or commercial boiler room. It replaces legacy part number 45-531-54, ensuring a direct-fit connection without the need for field modifications or wire splicing. Whether you are performing a boiler control troubleshooting routine or a full system retrofit, this Hydrolevel replacement part ensures that the water level control logic receives consistent data, preventing nuisance lockouts and ensuring optimal heating system performance.
Key Benefits for the Contractor:- OEM Compatibility: Specifically engineered for the Hydrolevel 45-531-51, ensuring a seamless interface with 1100 series controls.
- Direct Replacement: Fully replaces discontinued part number 45-531-54 with no specialized tools required for terminal seating.
- Industrial-Grade Build: Features ruggedized connectors designed to resist terminal backing and vibration-induced signal loss.
- Efficiency: Reduces diagnostic time by providing a "plug-and-play" solution for faulty or damaged HVAC control wiring.
Which Hydrolevel models are compatible with this harness?
This standard wire harness is designed exclusively for the Fuel Smart HydroStat Model 1100. It handles the specific pin configurations required for this series\' LWCO and temperature limit signals.
Does this harness replace the 45-349 or 45-348?
No. While they appear similar, the 45-531-51 is the standard lead for the 1100. Other part numbers like the 45-348 are often application-specific (e.g., connecting to UTC boilers) and may have different pinouts.
How do I identify if my current harness needs replacement?
Look for signs of thermal degradation at the connector pins, brittle insulation, or erratic "sensor not found" errors on the digital display which often indicate wiring harness failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $24.84
-65%$24.84
$8.69Hydrolevel 45-531-51 Wire Harness
