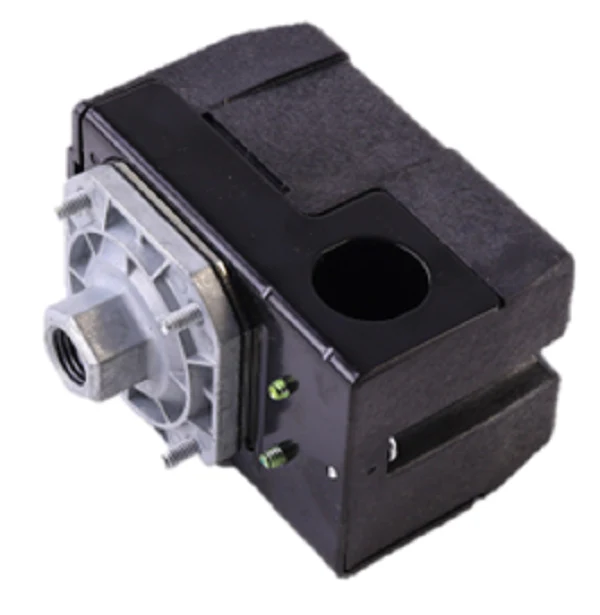

Hubbell Industrial Controls 69WR3Z125 Pressure Switch
The Hubbell Industrial Controls 69WR3Z125 Pressure Switch is a heavy-duty control solution engineered for automatic water systems and well pump applications requiring high-amperage capacity. Built upon the legacy of the Furnas W-Series, this reverse acting pressure switch is specifically designed to provide low-pressure protection by opening the circuit when system pressure drops below the set point, preventing dry-run damage. Rated for 3 HP at 115V and 5 HP at 230V, it handles the electrical demands of residential and commercial pumping systems with 2-pole, double-throw contacts.
Installation is streamlined through a straight-through wiring design and FNPT connection, eliminating the need for complex wire looping. The 12/5 PSI factory setting is maintained by a no-drift pressure mechanism, ensuring consistent performance in agricultural water supply and industrial pump control. A manual reset lever allows for controlled restarts after the system reaches safe operating levels, while the corrosion-resistant cover and captive cover screw facilitate long-term reliability in demanding environments.
Key Benefits
- Enhanced Pump Protection: Integrated low-pressure safety feature prevents pump operation during insufficient water supply.
- High Horsepower Rating: Supports 3 HP to 5 HP motors, making it suitable for larger well pump systems.
- Simplified Maintenance: Visible contacts and a straight-through wiring layout reduce diagnostic and installation time for technicians.
- Industrial Build Quality: Features a rugged corrosion-resistant cover and is UL Listed and CSA Certified for professional use.
- Operational Stability: No-drift pressure settings ensure the 12/5 PSI threshold remains accurate over repeated cycles.
Common Questions
What does reverse acting mean for this switch?
In the context of the Hubbell 69WR3Z125, reverse acting means the contacts open on falling pressure. This is primarily used as a low-pressure cutoff to protect the pump if the well runs dry or pressure falls below 5 PSI.
Is this switch compatible with 230V systems?
Yes, this double-pole pressure switch is rated for both 115V and 230V applications, supporting up to 5 HP at 230V single-phase configurations.
Can the pressure settings be adjusted in the field?
While factory set at 12/5 PSI, the 69WR3Z125 allows for easy pressure adjustment to fine-tune the cut-in and cut-out points to meet specific automatic water system requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
