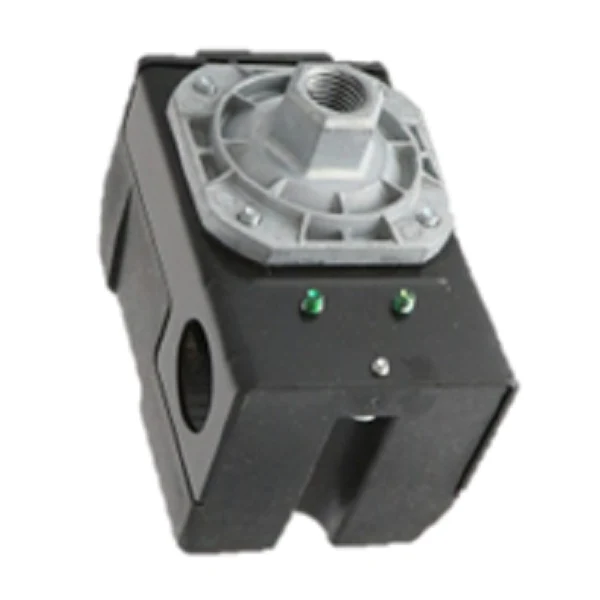

Hubbell Industrial Controls 69WB5 Pressure Switch
The Hubbell Industrial Controls 69WB5 Pressure Switch is a heavy-duty NEMA 1 control designed for high-demand water well pumps and car wash systems. This dual-pole pressure switch is factory-set for 30-50 PSI operation but remains fully adjustable to meet specific site requirements, featuring a minimum cut-in of 5 PSI and a maximum cut-out of 80 PSI. Built for long-term reliability in industrial environments, the 69WB5 water pump switch utilizes a 15-30 PSI differential to prevent frequent motor cycling and extend the service life of your equipment. The non-metallic, corrosion-resistant cover protects the internal mechanism, while the straight-through wiring and visible 2-pole double break contacts simplify field installation and troubleshooting for contractors. Rated for up to 3 HP at 240V (single phase) and 5 HP at 240V (three phase), this switch provides a robust solution for managing pressure in automatic water systems and fluid-handling machinery.
Key Benefits
- Enhanced System Durability: The 15-30 PSI adjustable differential minimizes short-cycling, reducing mechanical stress on the pump motor.
- Simplified Installation: Designed with straight-through wiring and a 1/4" NPT female connection for rapid mounting and fast electrical termination.
- Industrial-Grade Protection: Features a corrosion-resistant non-metallic cover and no-drift pressure settings to maintain calibration in humid or demanding environments.
- Versatile Compatibility: UL Listed and CSA Certified for a wide range of motor loads, supporting both single-phase and three-phase industrial applications.
Common Questions
What is the maximum pressure rating for the Hubbell 69WB5?
The Hubbell 69WB5 has a maximum open cut-out limit of 80 PSI and a maximum operating pressure of 200 PSI, making it suitable for standard and high-pressure water systems.
Can I adjust the cut-in and cut-out points on this switch?
Yes, while the factory setting is 30-50 PSI, the adjustable pressure switch range allows for a minimum cut-in of 5 PSI and a maximum cut-out of 80 PSI with a configurable differential of 15-30 PSI.
Is this switch suitable for outdoor or car wash environments?
The 69WB5 is frequently utilized in car wash pumping systems due to its corrosion-resistant cover, though it should be housed properly according to its NEMA rating for environmental protection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
