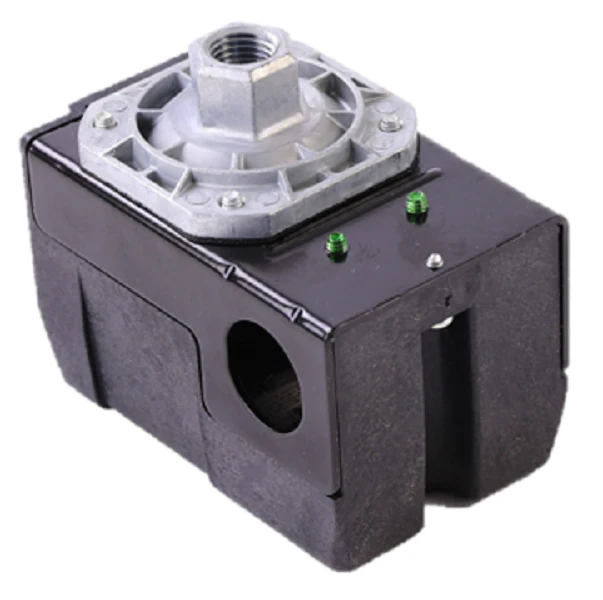

Hubbell Industrial Controls 69WA4Z2740 Pressure Switch
The Hubbell Industrial Controls 69WA4Z2740 Pressure Switch is a heavy-duty, 2-pole double break control designed for reliable water pump systems and industrial air applications. Rated for up to 115/230 VAC and 120 VDC with a 3 HP capacity, this 69W Series pressure switch features a factory setting of 27-40 PSI to ensure precise cut-in and cut-out performance. The unit is built with straight-through wiring for rapid field installation and visible contacts for easy inspection of the 2-pole mechanism. Its corrosion-resistant non-metallic cover protects internal components in harsh environments, while the 1/4 inch female NPT connection provides a secure fit to standard plumbing. Meeting UL listed and CSA certified standards, the 69WA4Z2740 utilizes no-drift pressure settings to maintain system calibration over time. For HVACR technicians and contractors, this switch provides a dependable replacement for Furnas brand W series controls in automatic water and pressure-regulated systems.
Key Benefits
- Internal 2-Pole Double Break Contacts: Provides reliable switching for single or three-phase motor loads up to 3 HP.
- No-Drift Settings: High-quality springs and mechanical assemblies ensure the 27-40 PSI range remains accurate without frequent adjustments.
- Simplified Wiring: The straight-through wiring design and captive cover screw reduce time spent on-site during installation or routine maintenance.
- Durable Construction: Features a rugged non-metallic cover and 1/4" NPT threads designed for industrial water and air applications.
- Technical Compliance: Rigorously tested to meet UL and CSA safety standards for industrial motor control equipment.
Common Questions
- What is the maximum pressure for this switch? While factory set at 27-40 PSI, this 69WA4Z2740 model has a maximum cut-out rating of 65 PSI and an adjustable differential range of 15-30 PSI.
- Can this be used for air compressors? Yes, the Hubbell 69WA4 series is cross-compatible for both water system pumps and air compressor applications within its rated pressure and electrical limits.
- Is the pressure setting adjustable? Yes, the cut-in and cut-out PSI can be adjusted by following the internal range and differential screw instructions to meet specific system requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
