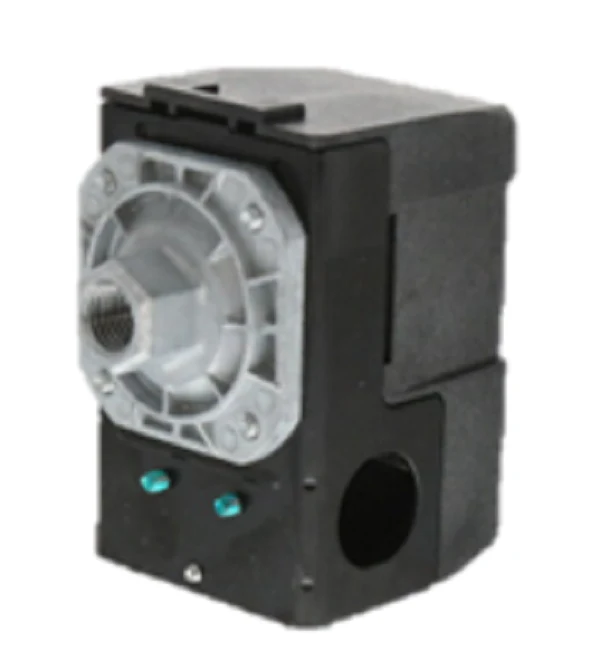

Hubbell Industrial Controls 69WA4 Pressure Switch
The Hubbell Industrial Controls 69WA4 Pressure Switch is a heavy-duty water well pump pressure switch designed for automatic water systems and air compressor applications. Built with the legacy of the Furnas brand W series, this switch provides reliable 30-50 PSI control for submersible or jet pumps. It features a high-impact, corrosion-resistant non-metallic cover and straight-through wiring for rapid installation. To support demanding motor loads, it carries 3 HP and 5 HP ratings (230V) and is equipped with 2-pole double throw contacts for easy inspection. A critical integrated manual reset lever acts as a low-pressure cutoff, preventing the pump from running dry if system pressure falls below the 5 PSI cut-in point. This industrial-grade pressure switch uses a 1/4" FNPT connection and maintains accurate, no-drift settings even in high-vibration environments, making it a standard choice for contractors looking for a well pressure tank switch replacement.
Key Benefits- Dual Application Versatility: Engineered for both air and water systems, providing precise 30-50# pressure regulation.
- Enhanced Motor Protection: The manual reset lever ensures the pump will not start during low-pressure conditions, protecting against dry-run damage.
- Robust Electrical Capacity: Rated for up to 5 HP at 230V, making it compatible with high-capacity submersible well pumps.
- Simplified Field Service: Features visible 2-pole contacts and silver cadmium-oxide brazed contacts for extended service life.
- Corrosion Resistance: The non-metallic cover prevents rust and degradation, ensuring performance in damp well pits or mechanical rooms.
What is the maximum pressure for the Hubbell 69WA4?
While the factory setting is 30-50 PSI, this adjustable pressure switch has a maximum cut-out pressure of 65 PSI and a minimum cut-in of 5 PSI.
Is the 69WA4 compatible with air compressors?
Yes, it is rated for both liquid and gas applications, though it is most frequently utilized as a 30-50 water pump switch with low-pressure protection.
Does this switch replace the Furnas 69WA low-pressure cutoff?
Yes, the Hubbell 69WA4 is the direct replacement for the Furnas Brand W series switches with the same specifications and manual reset functionality.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
