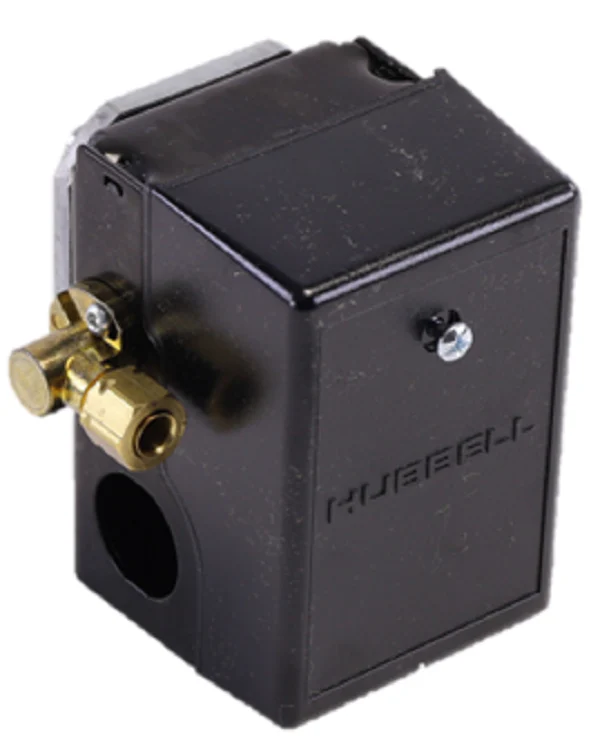

Hubbell Industrial Controls 69JG9Y Pressure Switch
The Hubbell Industrial Controls 69JG9Y Pressure Switch is a heavy-duty solution designed for precise air system management in commercial and industrial environments. This industrial pressure switch is factory-calibrated for a 100/175 PSI operating range, making it a standard fit for high-demand air compressor pressure switch replacements. It features a high-performance integrated unloader valve (1/4" NPT) that effectively blees off head pressure from the pump, facilitating a load-free restart and significantly reducing mechanical stress on the motor. Engineered for durability, the 69JG9Y utilizes silver cad-oxide brazed contacts to ensure reliable electrical conductivity and arc resistance across thousands of cycles. This NEMA 1 enclosure unit supports various terminal configurations and offers flexibility with multiple pipe locations, making it a go-to for technicians prioritizing compressor pressure control and system efficiency. Whether you are performing a routine HVAC system upgrade or repairing a fixed central air unit, this 69J series switch provides the consistent performance required for 3 to 5 HP motor applications.
Key Benefits
- Optimized Motor Loading: The 100/175 PSI pressure range and unloader valve work in tandem to prevent motor burnout during startup by releasing trapped head pressure.
- Industrial-Grade Construction: Built with silver cad-oxide contacts for superior wear resistance in high-cycle commercial HVAC installation settings.
- Universal Compatibility: The 1/4" female NPT connection and flexible unloader mounting positions simplify AC compressor repair and installation for various compressor frames.
- Safety and Compliance: Ensures system integrity as a UL-listed and CSA-certified component, maintaining strict tolerances for industrial automation.
Common Questions
How do I adjust the cut-in and cut-out settings on the 69JG9Y?
While factory-set at 100/175 PSI, the pressure range can be fine-tuned by adjusting the main spring for the cut-out point and the differential spring for the cut-in, provided the system remains within the 200 PSI maximum limit.
What is the purpose of the unloader valve on this specific model?
The valve is a critical HVAC part that exhausts compressed air between the pump and the check valve once the cut-out pressure is reached, allowing the motor to start without resisting high internal pressure.
Can this switch be used for both single-phase and three-phase applications?
Yes, the 69JG9Y is rated for both 1-phase and 3-phase systems, supporting up to 1.5 HP at 115V and 2 HP at 230V, making it a versatile HVAC replacement service component.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
