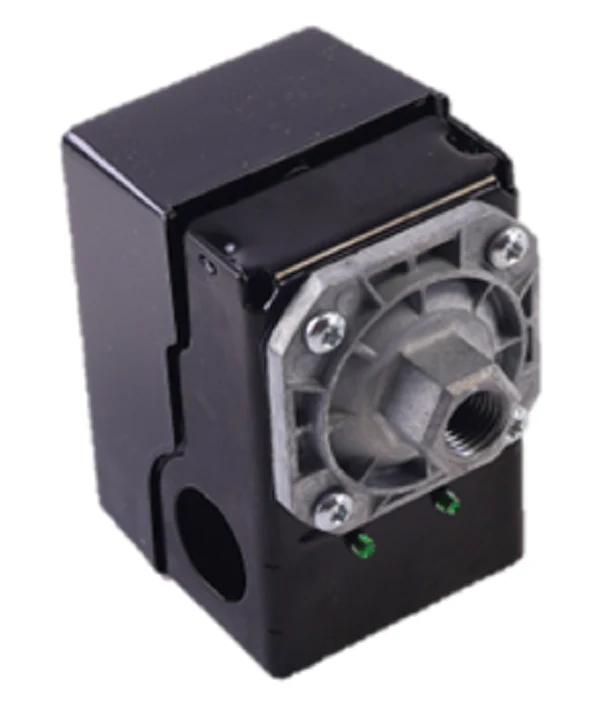

Hubbell Industrial Controls 69JG6 Pressure Switch
The Hubbell Industrial Controls 69JG6 Pressure Switch is a heavy-duty, Class 69J series control engineered for demanding air compressor and water system applications. This contractor-grade switch is factory-calibrated for an 80 PSI cut-in and a 100 PSI cut-out, providing precise regulation for 3 HP and 5 HP motors. Designed for maximum field adaptability, the 69J series features a unique unloader valve that can be rotated into eight different positions, allowing for streamlined tubing runs and simplified installation in tight mechanical spaces. The internal mechanism utilizes high-performance silver cad-oxide brazed contacts to ensure long-term electrical conductivity and resist pitting under high-amperage loads. With a 1/4 inch female NPT connection and a rugged, corrosion-resistant non-metallic cover, this industrial air pressure switch is built to maintain optimal system pressure while protecting equipment from excessive cycling. Whether you are performing a retro-fit or a new installation, the 69JG6 offers the technical reliability required for critical HVACR and pneumatic infrastructure.
Key Benefits for Contractors:- Field Adaptability: The multi-positional unloader valve and optional bottom cable entry with built-in strain relief reduce assembly time and material costs.
- Enhanced Durability: Equipped with silver cad-oxide contacts for superior arc resistance and a NEMA 1 rated corrosion-resistant enclosure.
- Versatile Compatibility: Rated for use with both single and three-phase motors (up to 5 HP) and is UL listed and CSA certified for wide-scale compliance.
- Precise Pressure Control: Pre-set 80-100 PSI range ensures consistent performance for standard industrial pneumatic systems.
Can the pressure range be adjusted in the field?
Yes, while the 69JG6 comes with a factory setting of 80-100 PSI, the range and differential can be adjusted using internal screws to meet specific system requirements, though staying near factory specs is recommended for longevity.
What is the maximum pressure rating for this series?
The Hubbell 69J series is rated for a maximum operating pressure of 200 PSI, making it suitable for a variety of high-pressure air applications.
Does this switch include an unloader valve?
Yes, the 69JG6 includes an improved unloader valve design to bleed off head pressure, ensuring the compressor motor does not start under load, which extends the life of the drive system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $166.36
-65%$166.36
$58.23Hubbell Industrial Controls 69JG6 Pressure Switch
