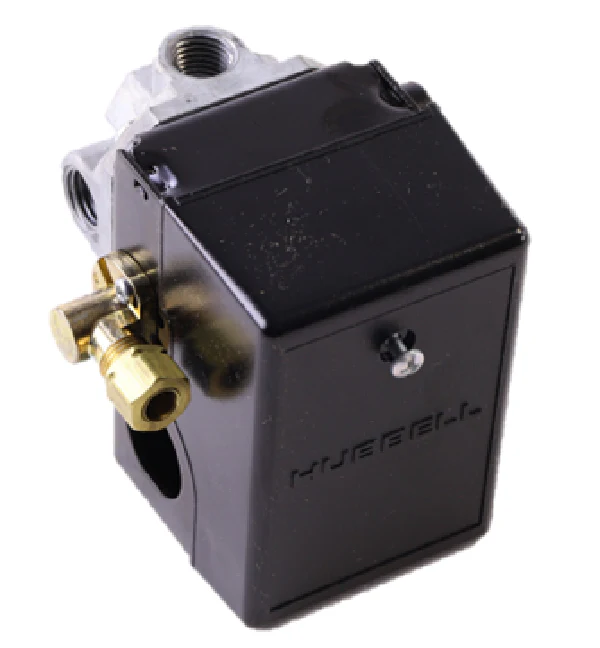

Hubbell Industrial Controls 69JF9LY2C Pressure Switch
The Hubbell Industrial Controls 69JF9LY2C Pressure Switch is a heavy-duty, 4-port pneumatic controller designed for reliable air compressor operation across single and three-phase systems. This 140-175 PSI pressure switch arrives factory-preset but remains fully adjustable for cut-in and cut-out PSI requirements within a 30-40 PSI differential range. Featuring the proven Furnas Hubbell design, the unit includes an integrated unloader valve with a 1/4 inch compression connection to facilitate load-free starts by bleeding head pressure. The four-port manifold provides 1/4 inch female NPT tank connections, allowing for the direct mounting of pressure gauges, safety relief valves, and other manifold accessories. Engineered with silver cad-oxide brazed contacts and a NEMA 1 enclosure, this switch is rated for 3 HP at 230V and 5 HP at 200 PSI maximum, making it a rugged universal replacement for standard air compressor controls.
Key Benefits- Universal Compatibility: Features a 4-port 1/4" NPT manifold, making it a direct replacement for various OEM controls from Furnas, Square D, and more.
- Enhanced Durability: Equipped with silver cad-oxide contacts to prevent pitting and extend the service life of the electrical assembly.
- System Protection: The 1/4" compression unloader valve ensures the motor starts without backpressure, preventing premature wear on the compressor pump.
- Integrated Control: Includes a manual on/off lever for simplified system maintenance and emergency shutdown.
What is the maximum horsepower rating for this switch?
The Hubbell 69JF9LY2C is rated for up to 1.5 HP at 115V (1-phase), 2 HP at 230V (1-phase), and up to 3 HP at 230V (3-phase) applications.
Does this switch require the unloader valve to be connected?
No. If your specific compressor configuration does not utilize an unloader line, the unloader valve can be left unconnected without affecting the primary pressure sensing functions.
Can I adjust the factory pressure settings?
Yes, although it is preset to a 140-175 PSI range, the 69JF9LY2C allows for field adjustments to meet specific cut-in and cut-out system requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
