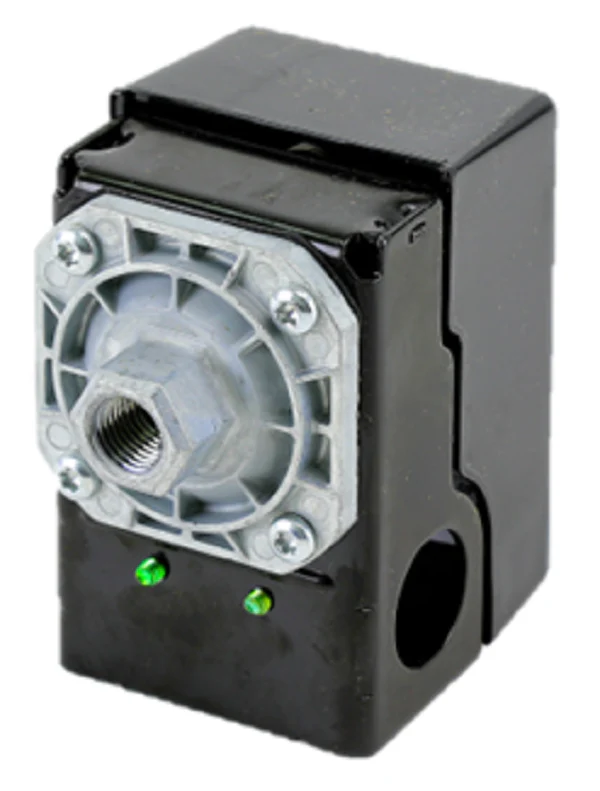

Hubbell Industrial Controls 69JF9 Pressure Switch
The Hubbell Industrial Controls 69JF9 Pressure Switch (often cross-referenced as the Furnas 69JF9) is an industry-standard, two-stage controller designed for small, electrically driven air compressors. This critical component is factory pre-set to a 140-175 PSI pressure range, ensuring the compressor cuts in at 140 PSI and cuts out at 175 PSI to maintain optimal tank pressure. Engineered for high-cycle reliability, the 69JF9 features silver cad-oxide brazed contacts and a NEMA 1 enclosure with integrated clamping strain relief. With a 1/4" FNPT connection and compatibility for both single-phase and three-phase systems, this air compressor pressure switch provides a 30?40 PSI differential. It is rated for motor loads up to 1.5 HP at 115V and 2 HP at 230V, making it a versatile choice for service technicians performing pressure switch replacement on 69J series systems.
- Universal Compatibility: Direct replacement for Furnas 69JF9 and various 69J series models in small compressor applications.
- High Performance: Features a 140-175 PSI factory setting with an adjustable differential range of 30-40 PSI for precise regulation.
- Rugged Electrical Design: Equipped with silver cad-oxide contacts for extended service life in high-demand industrial environments.
- Seamless Installation: Standard 1/4" FNPT female port and NEMA 1 enclosure with built-in strain relief facilitate rapid field mounting.
- Global Compliance: Fully UL listed, CSA certified, and CE/CCC approved for meeting stringent safety standards across multiple regions.
Common Questions:
Can I adjust the pressure range on the Hubbell 69JF9?
Yes, while it comes pre-set at 140-175 PSI, the range can be field-adjusted. However, always ensure the system stays within the maximum 175 PSI cut-out to prevent equipment damage.
Is this switch compatible with three-phase motors?
The 69JF9 pressure switch is rated for both single-phase and three-phase applications, supporting up to 2 HP at 230V.
What does the 1/4" FNPT connection mean?
This indicates a 1/4-inch Female National Pipe Thread connection, which is the standard interface for most small tank-mounted compressor systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
