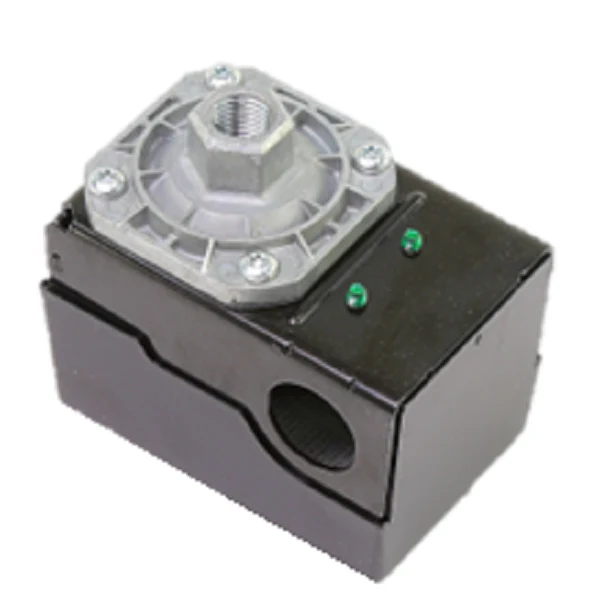

Hubbell Industrial Controls 69JF8 Pressure Switch
The Hubbell Industrial Controls 69JF8 Pressure Switch is a heavy-duty, field-adjustable control designed for professional-grade air compressor pressure regulation and water system applications. Engineered to handle up to 5 HP at 200 PSI, this Class 69J series pressure switch features a 1/4" female NPT connection with a standard pulsation orifice to dampen pressure spikes, protecting internal components. This specific model is a common replacement for the Furnas 69MB8, offering silver cad-oxide brazed contacts that ensure reliable electrical conductivity and arc resistance in high-cycle industrial environments. The rugged non-metallic cover resists corrosion, while the 115-150 PSI factory setting can be modified using the adjustable differential pressure switch mechanism to meet specific system requirements. Contractors value the 69J series for its adaptability, featuring several terminal options and a design that eliminates the need for complex unloader valve configurations in standard setups, making it a staple for maintaining HVACR system pressure control.
Key Benefits- Universal Compatibility: Directly replaces many legacy Furnas pressure switches, specifically the discontinued 69MB8 model.
- Enhanced Durability: Equipped with silver cad-oxide contacts and a corrosion-resistant NEMA 1 enclosure for long-term service life.
- Precision Control: Features an adjustable pressure range and differential to fine-tune compressor cut-in and cut-out points.
- Pulsation Orifice: Integrated 1/4" NPT connection includes a snubber to protect the diaphragm from rapid pressure fluctuations.
What is the difference between the 69JF8 and other 69J models?
The 69JF8 is typically configured without a manual auto-off lever or unloader valve, making it ideal for systems where these features are managed by other controls or are unnecessary for the compressor's startup torque. Always check your specific manifold requirements before installation.
Can this switch be used for water pump applications?
Yes, while primarily used for air compressors, the 69JF8 is UL listed and CSA certified for monitoring and controlling pressure in both air and water-based industrial systems within its rated PSI limits.
How do I adjust the cut-in and cut-out settings?
Internal adjustment screws allow for the modification of the range and differential. Turn the main range screw clockwise to increase both cut-in and cut-out settings simultaneously, and use the differential screw to adjust the span between them.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $132.46
-65%$132.46
$46.36Hubbell Industrial Controls 69JF8 Pressure Switch
The Hubbell Industrial Controls 69JF8 Pressure Switch is a heavy-duty, field-adjustable control designed for professional-grade air compressor pressure regulation and water system applications. Engineered to handle up to 5 HP at 200 PSI, this Class 69J series pressure switch features a 1/4" female NPT connection with a standard pulsation orifice to dampen pressure spikes, protecting internal components. This specific model is a common replacement for the Furnas 69MB8, offering silver cad-oxide brazed contacts that ensure reliable electrical conductivity and arc resistance in high-cycle industrial environments. The rugged non-metallic cover resists corrosion, while the 115-150 PSI factory setting can be modified using the adjustable differential pressure switch mechanism to meet specific system requirements. Contractors value the 69J series for its adaptability, featuring several terminal options and a design that eliminates the need for complex unloader valve configurations in standard setups, making it a staple for maintaining HVACR system pressure control.
Key Benefits- Universal Compatibility: Directly replaces many legacy Furnas pressure switches, specifically the discontinued 69MB8 model.
- Enhanced Durability: Equipped with silver cad-oxide contacts and a corrosion-resistant NEMA 1 enclosure for long-term service life.
- Precision Control: Features an adjustable pressure range and differential to fine-tune compressor cut-in and cut-out points.
- Pulsation Orifice: Integrated 1/4" NPT connection includes a snubber to protect the diaphragm from rapid pressure fluctuations.
What is the difference between the 69JF8 and other 69J models?
The 69JF8 is typically configured without a manual auto-off lever or unloader valve, making it ideal for systems where these features are managed by other controls or are unnecessary for the compressor's startup torque. Always check your specific manifold requirements before installation.
Can this switch be used for water pump applications?
Yes, while primarily used for air compressors, the 69JF8 is UL listed and CSA certified for monitoring and controlling pressure in both air and water-based industrial systems within its rated PSI limits.
How do I adjust the cut-in and cut-out settings?
Internal adjustment screws allow for the modification of the range and differential. Turn the main range screw clockwise to increase both cut-in and cut-out settings simultaneously, and use the differential screw to adjust the span between them.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
