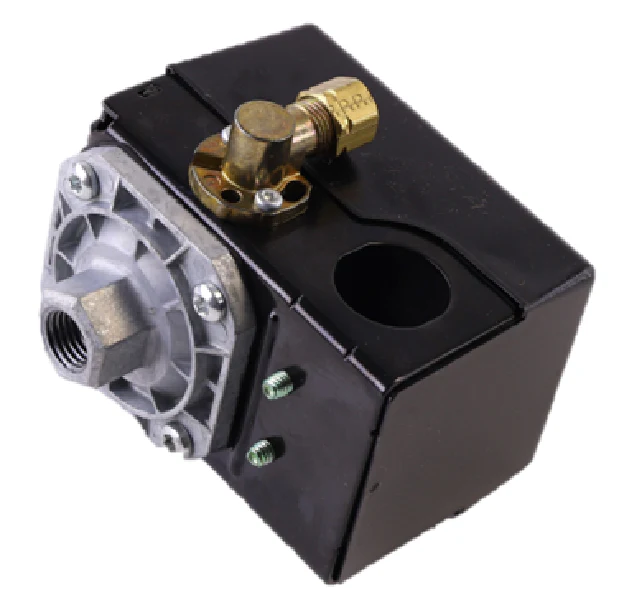

Hubbell Industrial Controls 69JF7LY Pressure Switch
The Hubbell Industrial Controls 69JF7LY Pressure Switch is a heavy-duty, single-port universal replacement designed for demanding air compressor applications. This 69J Series air compressor pressure switch comes factory-preset with a 95-125 PSI operating range, featuring a 25-33 PSI differential to ensure precise motor control and system efficiency. Built with silver cad-oxide brazed contacts, it is engineered to handle 1.5 HP at 120V or up to 5 HP at 240V, making it a rugged choice for both single-phase and three-phase industrial setups. The 1/4 inch NPT female connection and unloader valve with a 1/4 inch compression fitting allow for load-free starts by venting head pressure, while the integrated manual on/off lever provides local disconnect capability for maintenance. This Hubbell 69JF7LY (formerly Furnas) utilizes a NEMA 1 enclosure and is compatible with various OEM models, including Ingersoll Rand SS3 and SS5 series, providing a reliable air compressor pressure control valve solution that withstands high-cycle industrial environments.
Key Benefits- Enhanced Durability: Features silver cad-oxide brazed contacts to prevent pitting and extend the life of the electrical points under heavy inductive loads.
- Operational Flexibility: Specifically designed for a 1/4" NPT tank connection with an adjustable pressure range (50 PSI min cut-in to 145 PSI max cut-out) to suit specific field requirements.
- Load-Free Starting: Equipped with an improved unloader valve design that releases trapped air from the compressor head, preventing motor strain during the start cycle.
- Safe Manual Overide: Includes a robust manual on/off lever for immediate mechanical disconnection without needing to access the primary breaker panel.
How do I adjust the cut-in and cut-out settings?
Use the internal adjustment screws to modify the range; turning the primary screw clockwise increases both the cut-in and cut-out pressure simultaneously, while the differential screw manages the spread between the two settings.
What if my compressor doesn't use an unloader line?
The 69JF7LY remains fully functional as a standard pressure switch even if the included unloader valve is not connected; however, ensuring a load-free start is a best practice for motor longevity.
Is this switch compatible with 3-phase motors?
Yes, while commonly used in single-phase applications, the 69JF7LY is rated for 3-phase service up to 3HP at 240V, provided the amperage does not exceed the contact ratings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
