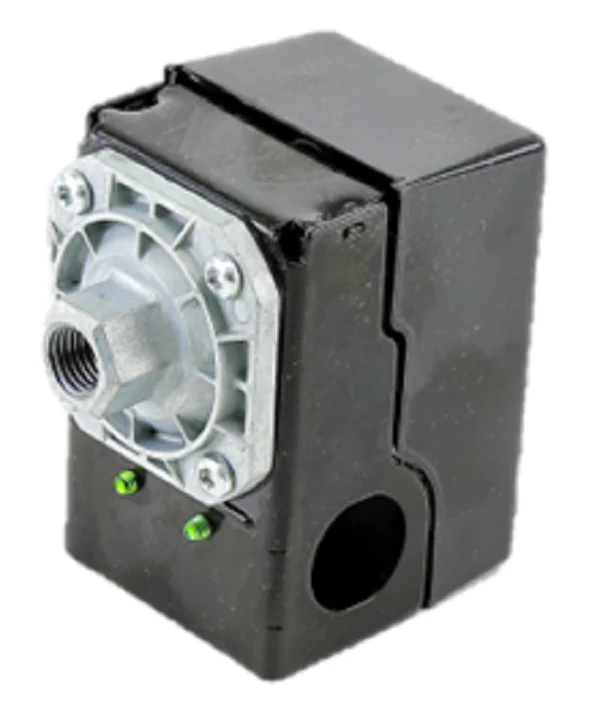

Hubbell Industrial Controls 69JF7 Pressure Switch
The Hubbell Industrial Controls 69JF7 Pressure Switch is a heavy-duty, single-stage air compressor pressure switch engineered to regulate tank pressure within a precise 95-125 PSI range. Designed for technicians who prioritize field reliability, this 95-125# pressure switch features silver cad-oxide brazed contacts to ensure superior electrical conductivity and prevent pitting during high-cycle industrial operations. The 69JF7 is housed in a rugged NEMA 1 enclosure, providing essential protection for the internal mechanisms in standard shop environments.
This universal replacement pressure switch offers a 1/4" female NPT single-port connection, making it highly adaptable for various small electrically driven air compressor systems. With a maximum rating of 1.5 HP at 115V and 2 HP at 230V, it handles both single and three-phase applications with ease. The internal differential range of 25-33 PSI allows for fine-tuning based on specific pneumatic requirements, ensuring the motor does not short-cycle under load. Built for versatility, the frame includes a built-in clamping strain relief for faster wiring and secure cable management.
Key Benefits
- Optimized Performance: Factory preset to 95 PSI cut-in and 125 PSI cut-out for immediate installation.
- Industrial Durability: Incorporates silver cad-oxide brazed contacts for extended contact life and reliable switching.
- Broad Compatibility: Standard 1/4" NPT female port facilitates easy integration into most Hubbell Furnas or Square D configurations.
- Compact Protection: Features a NEMA 1 enclosure and corrosion-resistant non-metallic cover for stable operation.
- Certified Safety: Meets global standards including UL listing, CSA certification, and CE approval for professional-grade installations.
Common Questions
How do I adjust the 69J series pressure settings?
Adjustments are made using high-tension springs within the housing. Turning the range nut clockwise increases both the cut-in and cut-out pressure simultaneously, while the differential nut can be used to shift the cut-out point independently.
Can this switch replace a dual-stage or unloader-equipped model?
The standard 69JF7 is a single-port, no-unloader configuration. If your system requires a pressure release for the compressor head, verify if your specific application needs the 69JF7LY variant which includes the unloader valve.
What is the maximum pressure limit for the Hubbell 69J series?
While this model is preset for 95-125 PSI, the 69J series architecture is capable of a maximum open cut-out of up to 200 PSI depending on the specific spring and mounting configuration used by the tech.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
