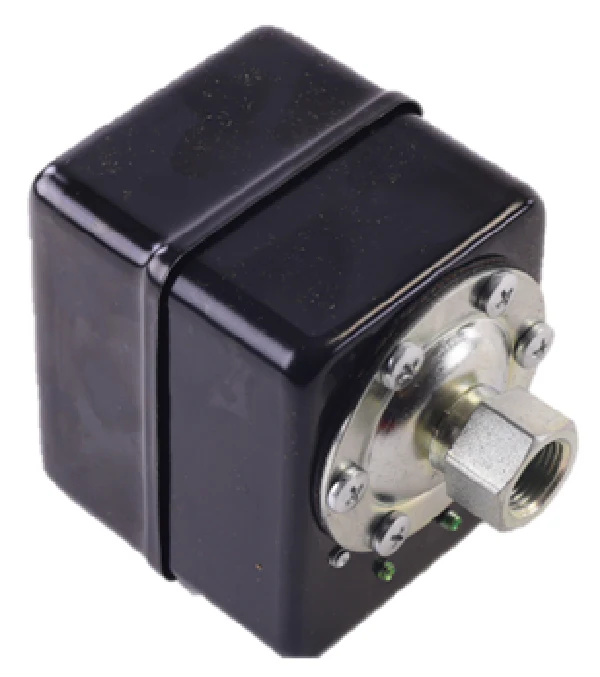

Hubbell Industrial Controls 69HA2 Pressure Switch
The Hubbell Industrial Controls 69HA2 Pressure Switch is a heavy-duty electromechanical controller engineered for precise automation in industrial air compressor and water systems. Designed to handle the rigorous demands of large-scale commercial compressors, this dual-pole pressure switch features a 10 PSI cut-in and 125 PSI cut-out configuration, providing a stable 20-35 PSI differential range. Its rugged construction includes a painted steel case and a corrosion-resistant cover, ensuring long-term performance in harsh mechanical environments. For technicians requiring reliable pump control and industrial automation, the 69HA2 offers straight-through wiring and visible, double-break contacts for simplified installation and field troubleshooting.
This NEMA 1 enclosure switch is UL Listed and CSA Certified, rated for both single-phase and three-phase applications. With a 3/8" female NPT connection, it integrates seamlessly into existing pneumatic lines. The Hubbell 69HA2 is frequently utilized in climate control and fire suppression systems where "no-drift" pressure settings are critical for system safety. Whether you are performing a pressure switch replacement or a new system build-out, this component provides the high-capacity horsepower ratings—up to 2HP at 115V and 3HP at 230V—needed for heavy-duty HVACR equipment. Its adjustable set points allow for fine-tuning based on specific mechanical requirements, ensuring the motor activates only when necessary to maintain optimal system pressure.
Key Benefits:- Precise Pressure Management: Factory-set at 100-125 PSI with an adjustable 20-35 PSI differential for tailored system performance.
- Industrial-Grade Durability: Features a sturdy painted steel housing that protects internal components from debris and mechanical wear.
- High Electrical Capacity: Robust 2-pole double-break contacts rated for 1-phase and 3-phase motor loads.
- Enhanced Safety: UL Listed and CSA Certified for professional-grade installations in commercial facilities.
- Simplified Maintenance: Visible contacts and straight-through wiring allow for rapid visual inspection and wiring during service calls.
- How do I adjust the differential on the Hubbell 69HA2? The differential can be adjusted within the 20-35 PSI range using the internal adjustment nut to accommodate specific system cycling requirements.
- Is this switch suitable for outdoor use? The 69HA2 is housed in a NEMA 1 enclosure, which is designed for indoor use. For outdoor applications, a NEMA 3R or 4 enclosure would be required.
- Can I use this pressure switch for a water pump? Yes, while optimized for air compressors, it is commonly used for water system pressure monitoring and pump control.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
