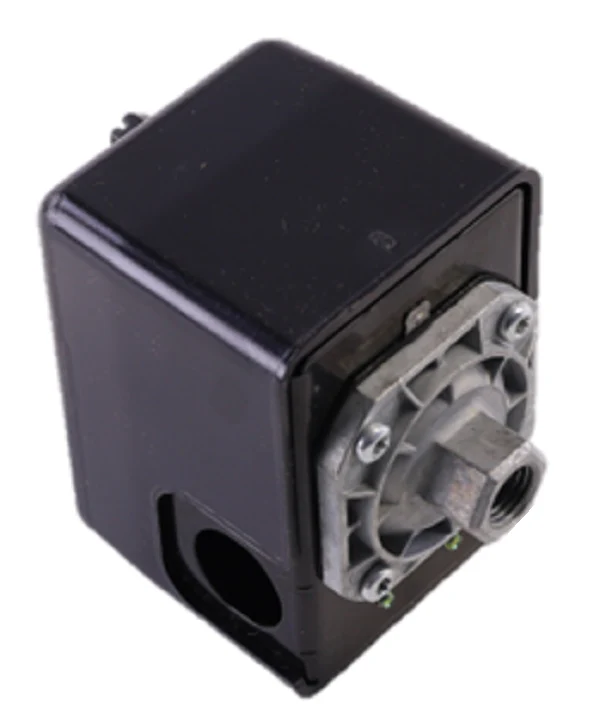

Hubbell Industrial Controls 69ES2 Pressure Switch
The Hubbell 69ES2 Pressure Switch is an industrial-grade water pump pressure control engineered for demanding residential, agricultural, and light commercial well systems. For contractors seeking a rugged alternative to standard switches, the HC69ES2 features a high-performance 80 PSI cut-out and a field-adjustable differential ranging from 15 to 25 PSI. This Hubbell Industrial Controls unit is built with 100% copper terminals and silver cad-oxide contact points to ensure superior conductivity and long-term reliability under heavy electrical loads. Its adjustable pressure switch design allows technicians to fine-tune system cycles, reducing pump wear and optimizing well system pressure control. The compact NEMA 1 enclosure includes a durable non-metallic cover and extra-wide diaphragm orifice to minimize clogging from sediment, making it a staple for professional installers who prioritize uptime and precise calibration.
Key Benefits:- Heavy-Duty Electrical Capacity: Rated for pumps up to 5 HP (240V 3-Phase) or up to 3 HP (240V 1-Phase), providing versatility for larger well water systems.
- Maintenance-Friendly Design: Features a replaceable contact cartridge that allows for service without losing system pressure or removing the switch from the line.
- Precise Pressure Management: Factory set for 80 PSI cut-out with a 10 PSI cut-in, providing a reliable baseline for high-pressure water applications.
- Clog-Resistant Orifice: The wide diaphragm opening is specifically designed to prevent debris buildup, ensuring consistent operation in varying water qualities.
- Certified Safety: UL listed and CSA certified construction with two large ground screws for secure, code-compliant installations.
- How do I adjust the cut-in and cut-out settings on the 69ES2? Use the large adjustment nut to raise or lower both points simultaneously; the smaller screw specifically adjusts the differential range between 15 and 25 PSI.
- Can this switch be used for air compressor applications? While primarily designed for water system pressure monitoring, its robust 80 PSI rating is compatible with certain low-pressure pneumatic control circuits.
- What is the benefit of the silver cad-oxide contacts? These contacts offer higher resistance to welding and pitting compared to standard copper, significantly extending the service life in high-cycle environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
