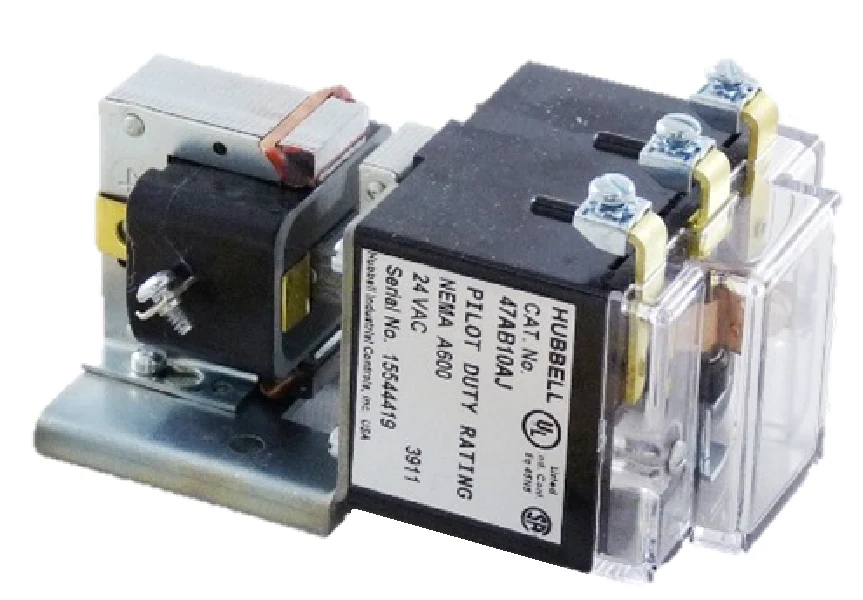

Hubbell Industrial Controls 47AB10AJ Relay
The Hubbell Industrial Controls 47AB10AJ is a purpose-built 24V Alternator Relay engineered for heavy-duty industrial and HVACR sequencing. Designed as an Open Type duplex controller, this component is essential for managing lead-lag operation in dual-pump or dual-compressor systems. By alternating the starting sequence of two motors, it ensures equal wear distribution and extends the operational lifespan of the entire system. This industrial-grade relay features high-integrity contacts capable of handling inductive loads, making it a reliable choice for cycling 24V control circuits. The open-frame design allows for direct mounting within existing control panels where space and heat dissipation are critical factors. For technicians troubleshooting multi-stage systems, the Hubbell 47AB10AJ provides consistent switching logic, preventing the simultaneous start-up of both motors and reducing peak electrical demand. Its robust mechanical construction is tailored for high-cycle environments, providing the durability required in commercial HVACR applications.
Key Benefits
- Equitable Load Distribution: Automatically cycles lead and lag motors to balance runtime and minimize premature mechanical failure.
- 24V Control Logic: Optimized for standard low-voltage HVACR control circuits, ensuring seamless integration with existing transformers.
- Industrial Durability: Built by Hubbell Industrial Controls to withstand the high-frequency switching common in duplex pump stations.
- Compact Open Frame: Facilitates easy installation and maintenance within NEMA-rated enclosures.
Common Questions
Can this relay be used for 120V control circuits?
No, the 47AB10AJ is specifically rated for 24V AC/DC control voltage. Applying higher voltage will damage the internal coil and compromise the switching circuit.
How do I wire this for a duplex pump system?
The relay should be wired into the control circuit of the motor starters. It utilizes an internal toggle mechanism that shifts the output to the alternate load every time the control circuit is de-energized.
Is this model suitable for outdoor installations?
Being an Open Type relay, it must be installed within a secondary protective housing or control panel to protect the electrical contacts from environmental contaminants and moisture.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
