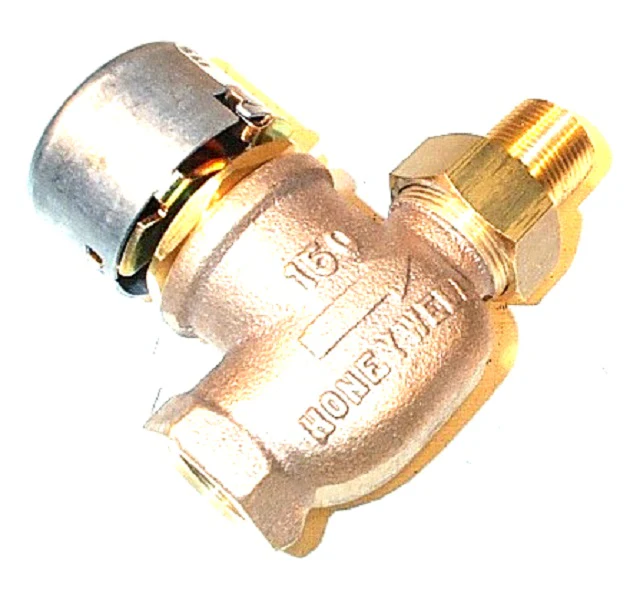

Honeywell VP525C1024 Valve
The Honeywell VP525C1024 is a professional-grade 3/4 inch NPT pneumatic radiator valve engineered for precise proportional control in residential and commercial steam or hot water systems. This normally open valve features a straight male union connection and delivers a 3.0 Cv flow capacity to ensure consistent thermal regulation. Designed for field flexibility, it ships with a 3-10 psi spring range and includes an additional 2-5 psi spring in the box for applications requiring lower pressure actuation. The unit leverages push-on air connections specifically sized for 1/4 inch O.D. plastic tubing, streamlining integration into existing pneumatic control loops. As the direct replacement for Honeywell 14004897-003, this pneumatic radiator actuator provides a reliable drop-in solution for maintaining legacy hydronic systems. The proportional valve action ensures smooth modulation, preventing the hunting and rapid cycling often associated with lower-quality replacements in varying load conditions.
Key Benefits- Versatile Media Compatibility: Rated for use in both vacuum-steam and hot water distribution systems.
- Interchangeable Spring Ranges: Includes 3-10 psi and 2-5 psi springs to match specific controller output signals.
- Compact Union Connection: Simplified straight male union design allows for installation in tight radiator enclosures.
- Secure Pneumatic Sealing: High-tolerance push-on connections reduce the risk of air leaks in the control line.
- Legacy System Support: Facilitates easy maintenance as a verified 14004897-003 cross-reference.
Is the Honeywell VP525C1024 suitable for high-pressure steam?
This valve is designed for low-pressure steam and hot water applications typical of radiator systems; always verify your system's max operating pressure against the 3.0 Cv rating.
Does this unit require a separate actuator for installation?
No, the VP525C1024 functions as an integrated pneumatic actuator and valve body assembly for standard proportional control.
What is the default position if air pressure is lost?
This is a normally open valve, meaning it will fail to the fully open position to provide maximum heat if the pneumatic signal is interrupted.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
