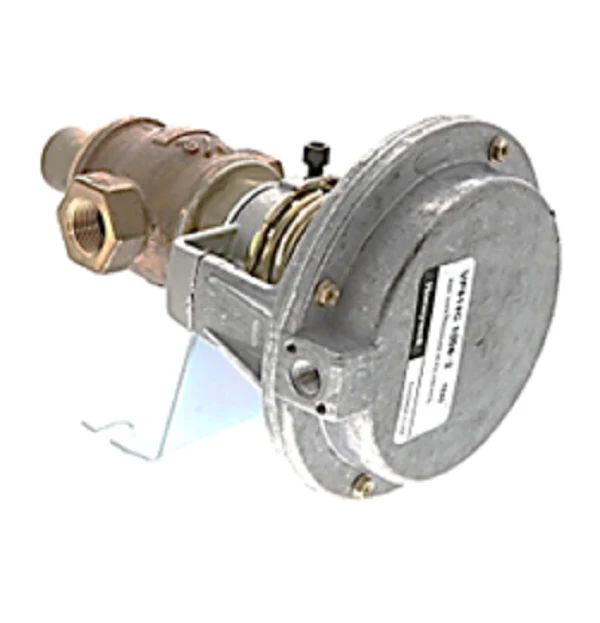

Honeywell VP519C1006 Air Valve
The Honeywell VP519C1006 Air Valve is a 1/2-inch, two-position three-way pneumatic valve designed for effective air switching in large building automation systems. Built for rigorous Day-Night or Summer-Winter changeover applications, this valve features a high 5.5 Cv flow capacity to ensure rapid response times across pneumatic control lines. With a 6-9 psi spring range and a maximum diaphragm pressure of 25 psi, it provides reliable proportional control for unit air conditioners utilizing hot or chilled water. This unit serves as the direct replacement for AL-161-4 and is compatible with systems from Johnson, Powers, Robertshaw, and Barber-Colman. The construction includes a cast bronze body, self-adjusting Teflon packing, and dual barbed air connections compatible with 5/32" or 1/4" plastic tubing. Its rotating actuator allows for flexible alignment with existing control air piping, simplifying field installation for contractors.
Key Benefits:
- Universal Replacement: Serves as a 1/2 inch NPT functional equivalent for various legacy pneumatic models, including the Barber-Colman AL-161-4.
- Enhanced Durability: Features self-adjusting Teflon cone packing and removable composition discs to ensure a tight shut-off and long service life in demanding HVACR environments.
- Installation Flexibility: The rotating actuator and dual barbed connections simplify integration with standard 5/32" and 1/4" tubing.
- High Flow Efficiency: A 5.5 Cv rating supports high-volume airflow requirements for large-scale unitary valve applications.
Common Questions:
Is the VP519C1006 compatible with mixed tubing sizes?
Yes, the valve is equipped with dual barbed air connections designed to accommodate either 5/32" or 1/4" plastic tubing commonly found in HVAC pneumatic systems.
What is the maximum operating temperature for this valve?
The Honeywell VP519C1006 is rated for ambient temperatures ranging from 40°F up to 160°F, with the control agent typically limited to chilled or hot water applications within a 40°F to 240°F range.
Can the actuator position be adjusted after mounting?
Yes, the actuator can be rotated on the valve bonnet, which allows technicians to align air connections with relay piping or control lines without removing the valve body from the pipe.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,910.16
-65%$1,910.16
$668.56Honeywell VP519C1006 Air Valve
The Honeywell VP519C1006 Air Valve is a 1/2-inch, two-position three-way pneumatic valve designed for effective air switching in large building automation systems. Built for rigorous Day-Night or Summer-Winter changeover applications, this valve features a high 5.5 Cv flow capacity to ensure rapid response times across pneumatic control lines. With a 6-9 psi spring range and a maximum diaphragm pressure of 25 psi, it provides reliable proportional control for unit air conditioners utilizing hot or chilled water. This unit serves as the direct replacement for AL-161-4 and is compatible with systems from Johnson, Powers, Robertshaw, and Barber-Colman. The construction includes a cast bronze body, self-adjusting Teflon packing, and dual barbed air connections compatible with 5/32" or 1/4" plastic tubing. Its rotating actuator allows for flexible alignment with existing control air piping, simplifying field installation for contractors.
Key Benefits:
- Universal Replacement: Serves as a 1/2 inch NPT functional equivalent for various legacy pneumatic models, including the Barber-Colman AL-161-4.
- Enhanced Durability: Features self-adjusting Teflon cone packing and removable composition discs to ensure a tight shut-off and long service life in demanding HVACR environments.
- Installation Flexibility: The rotating actuator and dual barbed connections simplify integration with standard 5/32" and 1/4" tubing.
- High Flow Efficiency: A 5.5 Cv rating supports high-volume airflow requirements for large-scale unitary valve applications.
Common Questions:
Is the VP519C1006 compatible with mixed tubing sizes?
Yes, the valve is equipped with dual barbed air connections designed to accommodate either 5/32" or 1/4" plastic tubing commonly found in HVAC pneumatic systems.
What is the maximum operating temperature for this valve?
The Honeywell VP519C1006 is rated for ambient temperatures ranging from 40°F up to 160°F, with the control agent typically limited to chilled or hot water applications within a 40°F to 240°F range.
Can the actuator position be adjusted after mounting?
Yes, the actuator can be rotated on the valve bonnet, which allows technicians to align air connections with relay piping or control lines without removing the valve body from the pipe.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
