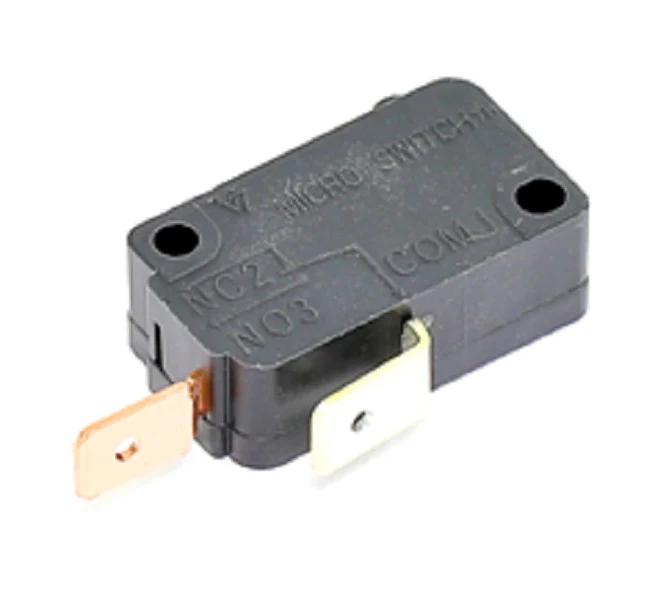

Honeywell V7-1Z29E9 Switch
The Honeywell V7-1Z29E9 is a premium miniature basic switch engineered for high-performance duty in critical HVACR systems and industrial assemblies. Designed with a Standard Pin Plunger actuator, this SPST-NO (Single Pole Single Throw, Normally Open) switch is built to handle significant electrical loads, featuring a current rating of 25A at 250V AC. Its rugged thermoplastic housing provides reliable operation in extreme environments with a temperature range spanning from -40°C to 185°F (-40°C to 85°C). Performance is localized through 0.250-inch quick-connect terminals, ensuring secure integration into wiring harnesses for air conditioning units, vending machine motors, and pressure switch assemblies. With a mechanical life rated for 10 million cycles and a reliable snap-spring mechanism, the V7-1Z29E9 snap action switch is the industry standard for high cost-of-failure applications where precision ON/OFF logic or limit sensing is mandatory.
Key Benefits- Heavy-Duty Switching: Handles up to 25A current loads, making it suitable for power duty switching in heating and cooling equipment.
- Precise Actuation: Features a pin plunger designed for accurate end-of-limit or presence/absence sensing with an operating force of 1.23 to 2.21 N.
- Broad Compatibility: Standardized V7 series package size ensures global acceptance and easy replacement across diverse hardware platforms.
- Environmental Resilience: Thermoplastic casing is built for long-term reliability in harsh HVACR mechanical rooms.
What is the contact configuration for the Honeywell V7-1Z29E9?
This model utilizes a Single Pole Single Throw, Normally Open (SPST-NO) circuit. The switch remains open until the pin plunger is actuated.
Which terminal type does this switch use?
It is equipped with 0.250" (6.3mm) quick-connect spread terminals for fast and secure electrical connections in the field.
Can I use the V7-1Z29E9 in low-temperature refrigeration applications?
Yes, the switch is rated for operation down to -40°C, making it highly effective for cold-start environments and refrigeration controls.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $10.73
-65%$10.73
$3.76Honeywell V7-1Z29E9 Switch
