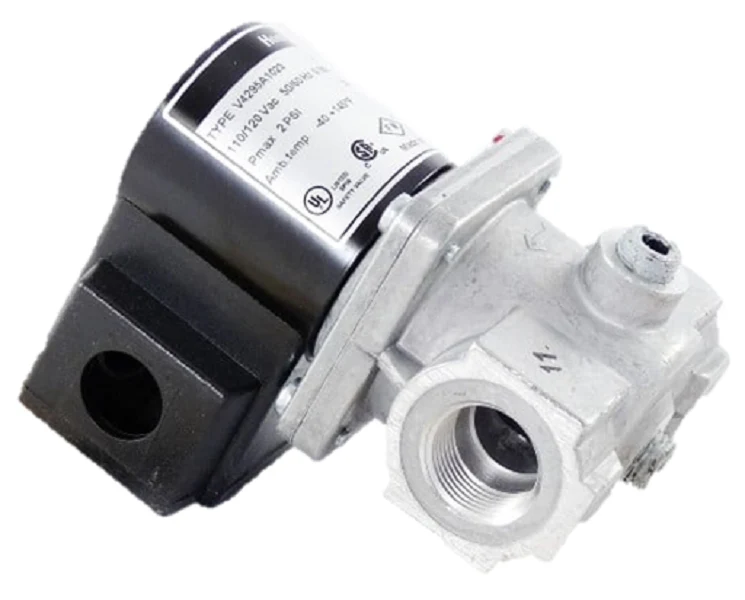

Honeywell V4295A1023 Gas Valve
The Honeywell V4295A1023 is a rugged, normally closed solenoid gas valve designed for tight shut-off and reliable flow control in medium-pressure gas systems. This 3/4 inch NPT valve features a straight-through, non-offset die-cast aluminum body, providing a maximum flow capacity of 645 CFH (cubic feet per hour) at a 1-inch pressure drop. Engineered for standard 120 VAC high-limit or primary safety control circuits, it handles a 2 PSI maximum pressure rating and is compatible with air, natural gas, LP, and mixed gases. The solenoid actuator delivers a rapid response with both opening and closing times under one second, ensuring immediate termination of fuel flow upon power loss. With dual 1/4 inch NPT pressure taps on both the inlet and outlet sides, technicians can easily verify drop-off or manifold pressures. It operates over a broad temperature range of -40°F to 130°F, including screw terminals for simplified field wiring.
Key Benefits for Contractors:
- Universal Gas Compatibility: Rated for use with Natural, Liquefied Petroleum (LP), Manufactured, Mixed gases, and Air.
- High-Speed Actuation: Achieves full closure in less than 1 second, meeting stringent safety protocols for rapid fuel shut-off.
- Flexible Installation: The compact, non-offset body supports mounting from vertical to 90 degrees, accommodating tight furnace or boiler vestibules.
- Integrated Diagnostics: Upstream and downstream 1/4" NPT pressure tappings eliminate the need for drilling or adding external tees.
- Consistent Performance: High spring force design supports up to 0.7 PSI back pressure at the valve seat, preventing leaks due to downstream fluctuations.
Common Questions:
What is the flow direction of the V4295A1023?
This is a straight-through gas valve. Ensure the arrow on the die-cast body matches the direction of the gas flow during installation to prevent seat failure.
Can this valve be used for outdoor applications?
It is rated for -40°F to 130°F, but the housing should be protected from direct moisture exposure as it uses standard screw terminal connections.
Does the inlet pressure affect the closing force?
No, the Honeywell V4295 series is designed so that the inlet pressure does not influence the valve's ability to close, ensuring a consistent safety seal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $237.48
-65%$237.48
$83.12Honeywell V4295A1023 Gas Valve
The Honeywell V4295A1023 is a rugged, normally closed solenoid gas valve designed for tight shut-off and reliable flow control in medium-pressure gas systems. This 3/4 inch NPT valve features a straight-through, non-offset die-cast aluminum body, providing a maximum flow capacity of 645 CFH (cubic feet per hour) at a 1-inch pressure drop. Engineered for standard 120 VAC high-limit or primary safety control circuits, it handles a 2 PSI maximum pressure rating and is compatible with air, natural gas, LP, and mixed gases. The solenoid actuator delivers a rapid response with both opening and closing times under one second, ensuring immediate termination of fuel flow upon power loss. With dual 1/4 inch NPT pressure taps on both the inlet and outlet sides, technicians can easily verify drop-off or manifold pressures. It operates over a broad temperature range of -40°F to 130°F, including screw terminals for simplified field wiring.
Key Benefits for Contractors:
- Universal Gas Compatibility: Rated for use with Natural, Liquefied Petroleum (LP), Manufactured, Mixed gases, and Air.
- High-Speed Actuation: Achieves full closure in less than 1 second, meeting stringent safety protocols for rapid fuel shut-off.
- Flexible Installation: The compact, non-offset body supports mounting from vertical to 90 degrees, accommodating tight furnace or boiler vestibules.
- Integrated Diagnostics: Upstream and downstream 1/4" NPT pressure tappings eliminate the need for drilling or adding external tees.
- Consistent Performance: High spring force design supports up to 0.7 PSI back pressure at the valve seat, preventing leaks due to downstream fluctuations.
Common Questions:
What is the flow direction of the V4295A1023?
This is a straight-through gas valve. Ensure the arrow on the die-cast body matches the direction of the gas flow during installation to prevent seat failure.
Can this valve be used for outdoor applications?
It is rated for -40°F to 130°F, but the housing should be protected from direct moisture exposure as it uses standard screw terminal connections.
Does the inlet pressure affect the closing force?
No, the Honeywell V4295 series is designed so that the inlet pressure does not influence the valve's ability to close, ensuring a consistent safety seal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
