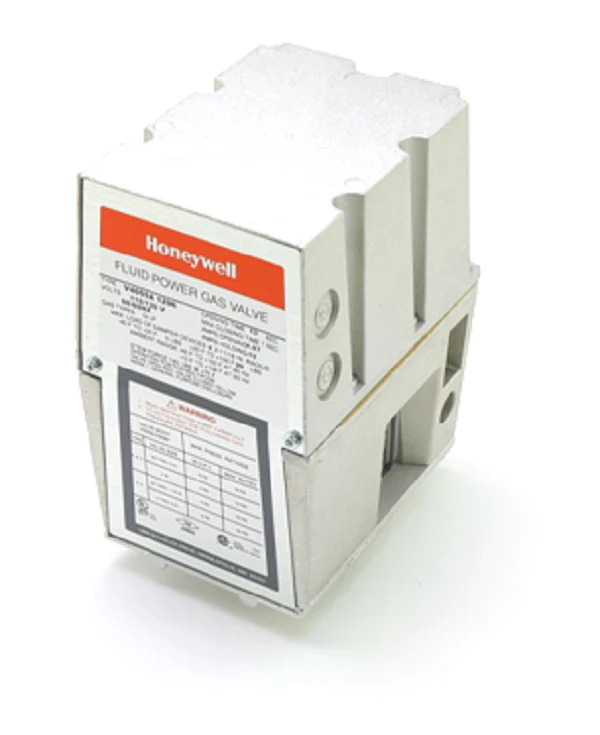

Honeywell V4055A1296 Actuator
The Honeywell V4055A1296 is a professional-grade On-Off Fluid Power Gas Valve Actuator designed for heavy-duty industrial and commercial combustion systems. Engineered for 120Vac operation, this unit provides a controlled 13-second opening timing and a rapid safety lockout response with a closing timing of 1 second or less. It interfaces seamlessly with V5055 and V5097 series valve bodies to manage gas flow to commercial burners and high-capacity boilers. With a 5 PSI maximum operating pressure and a wide ambient temperature rating of -40°F to 150°F, this fluid power actuator maintains reliable performance in demanding mechanical rooms. This specific model features an internal auxiliary switch factory-adjusted to trigger at 90% of the stroke, facilitating precise sequencing with external equipment. Technicians should note that the Honeywell V4055A1296/U is the identical universal SKU for this replacement part, ensuring drop-in compatibility for existing fuel trains.
Technical Specifications & Performance Benefits
- Optimized Flow Control: Specifically engineered for use with V5055/V5097A,B Series Valve Bodies to ensure leak-proof shutoff and reliable gas train sequencing.
- Integrated Limit Switching: Standard internal SPDT auxiliary switch provides mechanical feedback, proving the valve position for system interlocks.
- Robust Fluid Power Drive: Utilizes a dependable hydraulic mechanism to deliver high-torque actuation even in low-ambient conditions.
- Standardized Electrical Interface: 120V 60Hz power requirement allows for straightforward integration into existing Honeywell combustion controls and burner management systems.
Common Installation & Compatibility Questions
Is the V4055A1296 compatible with V5097 gas valves?
Yes, this actuator is a standard fit for both V5055 and V5097 series valve bodies, commonly used in high-capacity fuel trains.
What is the difference between the V4055A1296 and the V4055A1098?
The V4055A1296 includes a pre-installed auxiliary switch and specific timing profiles required for certain industrial safety standards that the base models may lack.
Does this unit support a proof-of-closure (POC) switch?
This model features a 90% stroke auxiliary switch; if your application requires a separate Proof-of-Closure hookup, verify the valve body and actuator combination matches your specific safety logic requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
