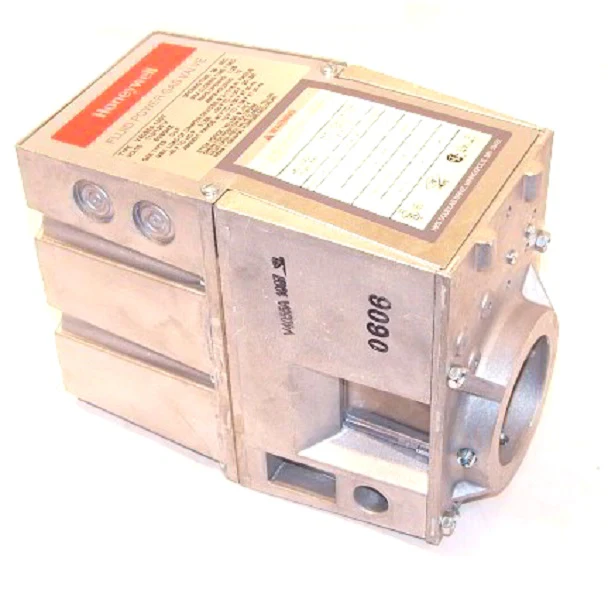

Honeywell V4055A1007 Actuator
The Honeywell V4055A1007 is a heavy-duty, on-off fluid power gas valve actuator designed specifically for commercial and industrial burner applications. Engineered for 120Vac operation, this low pressure actuator provides a reliable interface with Honeywell V5055 and V5097 series valve bodies to deliver consistent fuel supply control. With a 26-second opening timing, this unit facilitates a smooth light-off sequence, reducing mechanical stress on the system and ensuring stable ignition. The rapid safety response is handled by a one-second maximum closing time, which meets stringent code and insurer requirements for final safety shutoff service.
This rugged 120V actuator is identical to the Honeywell V4055A1007/U and operates efficiently within a broad temperature range of -40°F to 150°F. It supports a 5 psi maximum operating pressure, making it a standard choice for low-pressure gas trains. Field-proven for its durability, the V4055A1007 features high-visibility indicators, using a red marker to signal an open valve and a yellow marker for a fully closed status. The multipoise design allows for installation in any orientation directly to the valve bonnet using three set screws, providing flexibility in tight industrial layouts.
Key Benefits for Contractors
- Optimized Light-Off: The 26-second opening stroke is ideal for large capacity burners requiring a controlled, smooth ignition process.
- Universal Compatibility: Seamlessly replaces legacy units and integrates with V5055A, V5055B, V5097A, and V5097B valve bodies.
- Rapid Safety Shutdown: Spring-return mechanism ensures a 1-second closing time upon de-energization to prevent gas leakage.
- Rugged Construction: NEMA 1 enclosure protects internal components in demanding boiler room environments.
- Visual Verification: Direct-drive stem indicators allow for immediate visual confirmation of valve position without specialized tools.
Common Questions
Is the V4055A1007 interchangeable with the V4055A1007/U?
Yes, those part numbers refer to the same technical specification and are fully interchangeable for all 120V on-off applications.
Can this actuator be mounted on any V5055 valve body?
It is designed for use with the A and B series (standard and characterized guide) low-pressure valve bodies. Always verify the maximum safe operating pressure of your specific combination.
Does this model include an internal auxiliary switch?
No, the V4055A1007 is a standard on-off actuator without built-in auxiliary switches. If position feedback is required, field-addable switch kits or "D" series actuators should be used.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,027.71
-65%$1,027.71
$359.70Honeywell V4055A1007 Actuator
The Honeywell V4055A1007 is a heavy-duty, on-off fluid power gas valve actuator designed specifically for commercial and industrial burner applications. Engineered for 120Vac operation, this low pressure actuator provides a reliable interface with Honeywell V5055 and V5097 series valve bodies to deliver consistent fuel supply control. With a 26-second opening timing, this unit facilitates a smooth light-off sequence, reducing mechanical stress on the system and ensuring stable ignition. The rapid safety response is handled by a one-second maximum closing time, which meets stringent code and insurer requirements for final safety shutoff service.
This rugged 120V actuator is identical to the Honeywell V4055A1007/U and operates efficiently within a broad temperature range of -40°F to 150°F. It supports a 5 psi maximum operating pressure, making it a standard choice for low-pressure gas trains. Field-proven for its durability, the V4055A1007 features high-visibility indicators, using a red marker to signal an open valve and a yellow marker for a fully closed status. The multipoise design allows for installation in any orientation directly to the valve bonnet using three set screws, providing flexibility in tight industrial layouts.
Key Benefits for Contractors
- Optimized Light-Off: The 26-second opening stroke is ideal for large capacity burners requiring a controlled, smooth ignition process.
- Universal Compatibility: Seamlessly replaces legacy units and integrates with V5055A, V5055B, V5097A, and V5097B valve bodies.
- Rapid Safety Shutdown: Spring-return mechanism ensures a 1-second closing time upon de-energization to prevent gas leakage.
- Rugged Construction: NEMA 1 enclosure protects internal components in demanding boiler room environments.
- Visual Verification: Direct-drive stem indicators allow for immediate visual confirmation of valve position without specialized tools.
Common Questions
Is the V4055A1007 interchangeable with the V4055A1007/U?
Yes, those part numbers refer to the same technical specification and are fully interchangeable for all 120V on-off applications.
Can this actuator be mounted on any V5055 valve body?
It is designed for use with the A and B series (standard and characterized guide) low-pressure valve bodies. Always verify the maximum safe operating pressure of your specific combination.
Does this model include an internal auxiliary switch?
No, the V4055A1007 is a standard on-off actuator without built-in auxiliary switches. If position feedback is required, field-addable switch kits or "D" series actuators should be used.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
