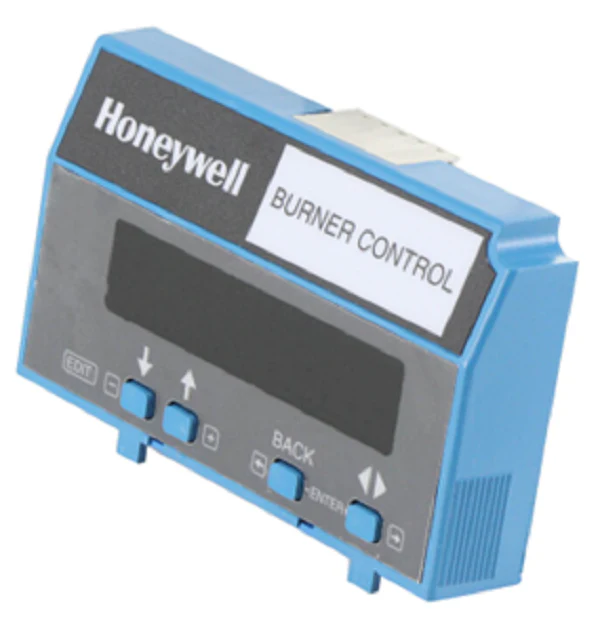

Honeywell S7800A1001 Keyboard Display Module
The Honeywell S7800A1001 Keyboard Display Module (KDM) is a critical diagnostic interface designed for use with the Honeywell 7800 Series Relay Modules. Engineered for demanding industrial environments, this Series 5 module features a high-visibility 2-row by 20-column Vacuum Fluorescent Display (VFD) that provides real-time burner sequence status, including standby, purge, pilot ignition, and run modes. Operating on 13Vdc peak fullwave rectified voltage, the S7800A1001 ensures precise monitoring of flame signal strength, total cycles, and fault history for up to the six most recent lockout events. With an ambient temperature range of -40°F to 140°F, it maintains reliable performance in extreme mechanical rooms. Technicians can utilize the integrated keyboard for remote reset functionality and to configure the “Call Service” business card feature, which allows for custom contact information to be displayed during system faults. This unit is essential for first-out annunciation and detailed system diagnostics, streamlining troubleshooting for any 7800 series microprocessor-based burner control.
Key Benefits- Provides first-out annunciation to quickly identify the root cause of burner lockout.
- Displays comprehensive diagnostic information including flame failure response time and historical fault data.
- Supports remote reset and report generation to minimize downtime and improve site management.
- Features high-contrast VFD communication for clear readability in low-light boiler room conditions.
- Compatible with a wide range of fuel applications including gas, oil, and combination burners.
Is the Honeywell S7800A1001 backward compatible?
Yes, the S7800A1001 is designed to be backward compatible with all existing Honeywell 7800 Series relay modules and fits directly into the face of the control for immediate communication.
Can this display be mounted remotely from the burner control?
Yes, it can be mounted remotely on a panel door or within 4,000 feet of the relay module when using appropriate ControlBus wiring and a 13Vdc power source for additional units.
What is the difference between S7800A1001 and other KDM models?
The S7800A1001 is an English-language display. Other variations, such as the S7800A1142, may include specialized software for valve proving features or different language sets.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $809.74
-65%$809.74
$283.41Honeywell S7800A1001 Keyboard Display Module
