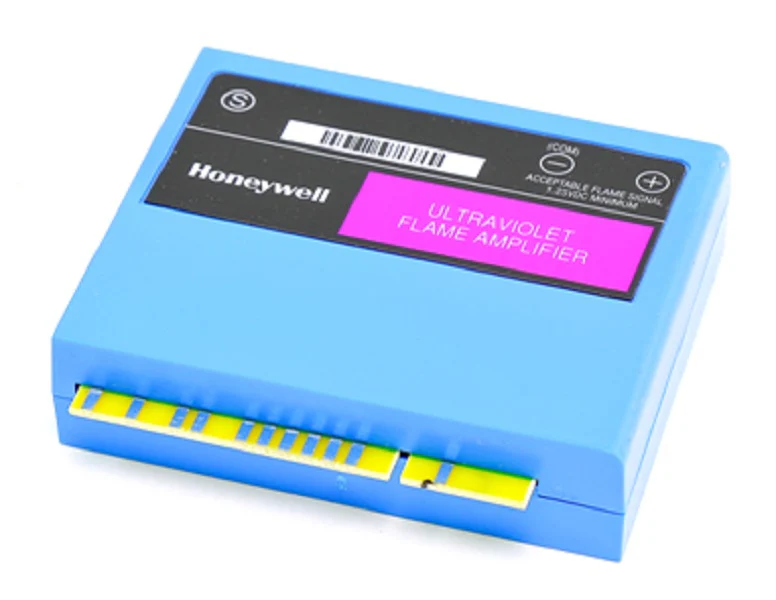

Honeywell R7849A1023 Amplifier
When you are troubleshooting a burner that will not stay online, the Honeywell R7849A1023 Ultraviolet Flame Amplifier is the critical component for reliable flame sensing. Engineered for use with 7800 Series Relay Modules and R7140 controls, this purple-coded, solid-state plug-in card is designed specifically for ultraviolet flame detection in gas and oil applications. It processes signals from Minipeeper Flame Sensors like the C7027A, C7035, and C7044, providing a stable flame signal strength between 0.0 and 5.0 Vdc. Professional technicians rely on the integrated flame signal test jacks for precise voltage measurement using a standard 1M ohm/volt meter. This non-self-checking amplifier features a specific Flame Failure Response Time (FFRT) of 2.0 or 3.0 seconds, ensuring the safety of your combustion system. The edge connector is keyed for proper orientation, preventing installation errors in the field. Maintaining a Honeywell R7849A1023 on your service truck ensures you can quickly restore 7800 Series Primary Safety Control performance during emergency calls.
Key Benefits for the Contractor:
- 7800 Series Compatibility: Seamlessly integrates with 7800 Series Relay Modules for standard UV flame sensing.
- Technical Precision: Real-time diagnostics via 0.0 to 5.0 Vdc flame signal test jacks allow for accurate sensor alignment.
- Standardized Response: Fixed 2.0 or 3.0 second Flame Failure Response Time provides balanced safety and nuisance-trip resistance.
- Purple Color-Coding: Instantly identifies the component as an ultraviolet flame amplifier to prevent part mismatch.
- Reliable Sensor Pairing: Optimized for C7027A, C7035, and C7044 Minipeeper UV scanners in gas or oil burners.
Common Questions:
What is the minimum acceptable flame signal for the R7849A1023?
For stable operation, a minimum of 1.25 Vdc is required. If your reading through the test jacks is lower, check the Minipeeper flame sensor alignment or clean the viewing lens.
Can I use this amplifier with a flame rod?
No, the Honeywell R7849A1023 is specifically for ultraviolet flame detection. For rectification systems using flame rods or C7012 sensors, a green or blue-labeled amplifier is required.
Is the R7849A1023 a self-checking amplifier?
No, this is a standard no self-check amplifier. If your application requires continuous 24-hour operation, you may need a dynamic self-check model like the R7861.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
