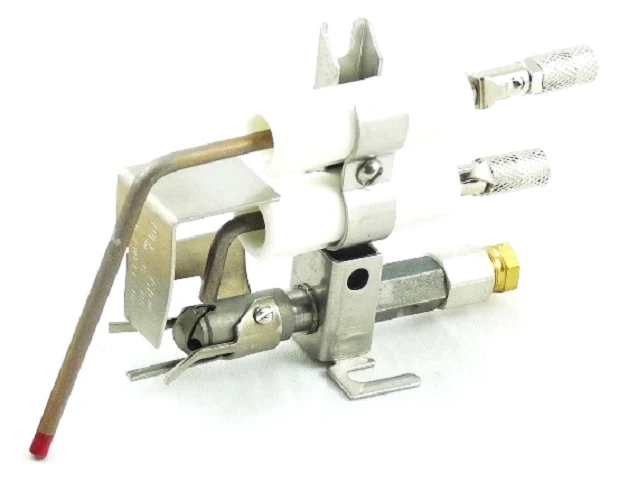

Honeywell Q179A1092 Gas Pilot
The Honeywell Q179A1092 Gas Pilot is a professional-grade flame rectifier burner assembly designed for high-performance industrial and commercial burner management. Engineered for intermittent or interrupted ignition sequences, this assembly uses the flame rectification principle to provide reliable flame proving when paired with a compatible electronic flame safeguard control. The primary aerated design features stainless steel fins, ensuring an optimal flame rod area to ground area ratio for a stabilized, high-strength flame signal.
This unit features a 45-degree T-style port and burner tip, delivering a specific flame pattern required for critical pilot applications. It comes equipped with a 0.028" diameter orifice calibrated for natural gas and includes both the stainless steel flame electrode and ignition electrode mounted in durable ceramic insulators. For ease of field installation, the 1/4" compression coupling and Rajah connectors facilitate quick gas and electrical attachments. The adjustable mounting bracket supports both side and end configurations, making the Q179A1092 a versatile drop-in replacement for the Q179A1092/U in existing HVACR systems.
Key Benefits- Maximum Signal Stability: Integrated stainless steel fins provide a consistent ground-to-rod ratio, minimizing signal dropout during high-demand cycles.
- Dual-Function Assembly: Includes both ignition and sensing electrodes, streamlining the hardware required for interrupted ignition setups.
- Precise Orifice Calibration: The pre-installed 0.028-inch orifice is optimized for natural gas consumption of approximately 2.0 cfh.
- Rugged Construction: Ceramic insulators and stainless steel components withstand the high-temperature environment of commercial burner chambers.
- Flexible Mounting: Universal bracket design allows for multiple orientations to accommodate tight combustion spaces.
Is the Q179A1092 compatible with LP gas systems?
As shipped, this model is configured with a 0.028" orifice for natural gas. For Liquid Propane (LP) applications, a specific LP orifice (typically part number 47540, 0.013") must be installed to ensure safe and proper combustion.
What is the difference between the Q179A and Q179B series?
The Q179A1092 includes both a flame electrode and an ignition electrode for electrically ignited pilots. The Q179B series typically only contains the sensing rod and is used for continuous pilot applications where external ignition is provided.
Can I adjust the electrodes for better signal?
Yes, the stainless steel electrodes are mounted in ceramic insulators that allow for minor adjustments to optimize the spark gap or the rod's position within the flame for better rectification.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $549.00
-65%$549.00
$192.15Honeywell Q179A1092 Gas Pilot
The Honeywell Q179A1092 Gas Pilot is a professional-grade flame rectifier burner assembly designed for high-performance industrial and commercial burner management. Engineered for intermittent or interrupted ignition sequences, this assembly uses the flame rectification principle to provide reliable flame proving when paired with a compatible electronic flame safeguard control. The primary aerated design features stainless steel fins, ensuring an optimal flame rod area to ground area ratio for a stabilized, high-strength flame signal.
This unit features a 45-degree T-style port and burner tip, delivering a specific flame pattern required for critical pilot applications. It comes equipped with a 0.028" diameter orifice calibrated for natural gas and includes both the stainless steel flame electrode and ignition electrode mounted in durable ceramic insulators. For ease of field installation, the 1/4" compression coupling and Rajah connectors facilitate quick gas and electrical attachments. The adjustable mounting bracket supports both side and end configurations, making the Q179A1092 a versatile drop-in replacement for the Q179A1092/U in existing HVACR systems.
Key Benefits- Maximum Signal Stability: Integrated stainless steel fins provide a consistent ground-to-rod ratio, minimizing signal dropout during high-demand cycles.
- Dual-Function Assembly: Includes both ignition and sensing electrodes, streamlining the hardware required for interrupted ignition setups.
- Precise Orifice Calibration: The pre-installed 0.028-inch orifice is optimized for natural gas consumption of approximately 2.0 cfh.
- Rugged Construction: Ceramic insulators and stainless steel components withstand the high-temperature environment of commercial burner chambers.
- Flexible Mounting: Universal bracket design allows for multiple orientations to accommodate tight combustion spaces.
Is the Q179A1092 compatible with LP gas systems?
As shipped, this model is configured with a 0.028" orifice for natural gas. For Liquid Propane (LP) applications, a specific LP orifice (typically part number 47540, 0.013") must be installed to ensure safe and proper combustion.
What is the difference between the Q179A and Q179B series?
The Q179A1092 includes both a flame electrode and an ignition electrode for electrically ignited pilots. The Q179B series typically only contains the sensing rod and is used for continuous pilot applications where external ignition is provided.
Can I adjust the electrodes for better signal?
Yes, the stainless steel electrodes are mounted in ceramic insulators that allow for minor adjustments to optimize the spark gap or the rod's position within the flame for better rectification.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
