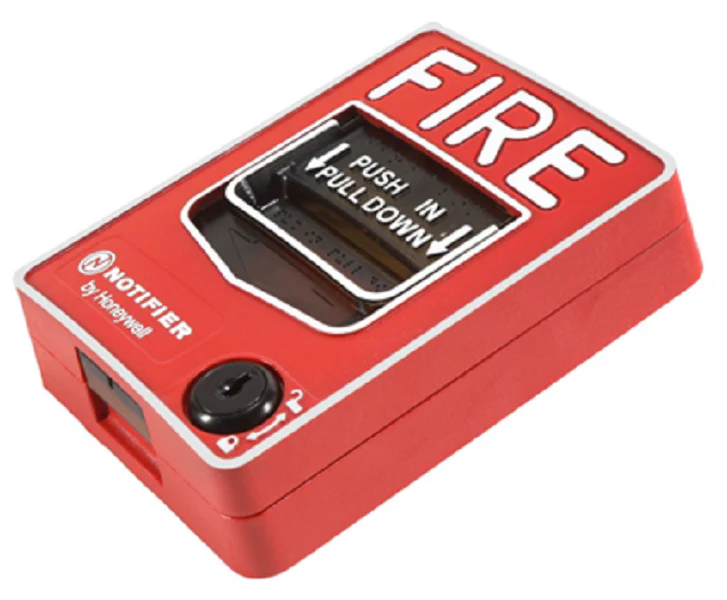

Honeywell NBG-12LX Pull Station
The Honeywell NBG-12LX Pull Station is a specialized addressable manual pull station designed for integration with intelligent fire alarm control panels. This dual-action station requires a "push in" and "pull down" motion, effectively mitigating accidental activation and nuisance alarms. It operates on a 24 Vdc nominal signaling line circuit (SLC) and is engineered for precise point-of-identification signaling. This model is natively compatible with FlashScan and CLIP communication protocols, ensuring high-speed polling and rapid emergency response across large-scale loops. Built for rigorous field use, the NBG-12LX features captive screw terminals that accept up to 12 AWG wiring, simplifying the installation for field technicians. The unit provides clear visual diagnostics via a built-in bicolor LED: a green flash indicates a normal polling state, while a steady red latch signifies an alarm condition. This fire alarm pull station is fully compliant with ADAAG requirements, maintaining a maximum activation force of 5 lbs. to ensure accessibility without compromising industrial reliability.
Key Benefits:
- System Precision: Features an integrated addressable fire alarm module that allows the control panel to identify the exact location of the pull station for immediate dispatch.
- Dual-Action Security: The two-step operation provides a mechanical safeguard against false triggers common in high-traffic environments.
- Flexible Integration: Supports SLC loop capacities of up to 159 stations on FlashScan systems and 99 stations on legacy CLIP loops.
- Durable Construction: High-impact polycarbonate housing with a textured finish designed for longevity in commercial and industrial settings.
- Simplified Maintenance: Features a key reset mechanism and the ability to open the station for inspection without initiating an alarm signal.
Common Questions:
Is the Honeywell NBG-12LX compatible with all Notifier systems?
This station is compatible with most intelligent Notifier control panels; however, it is generally not compatible with the FireWarden series or the NSP-25 panel. Professionals should verify the specific SLC maximum alarm current and protocol requirements of their FACP before installation.
What are the wiring requirements for the NBG-12LX?
The unit utilizes captive screw terminals. For optimal signal integrity within the SLC loop, technicians typically use 12 to 18 AWG twisted-pair wiring, depending on the run length and local code requirements.
Can this pull station be surface mounted?
Yes, the NBG-12LX can be semi-flush mounted on a standard single-gang or double-gang electrical box. For surface mount applications, use the SB-10 or SB-I/O backbox to maintain environmental ratings and non-condensing humidity compliance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
