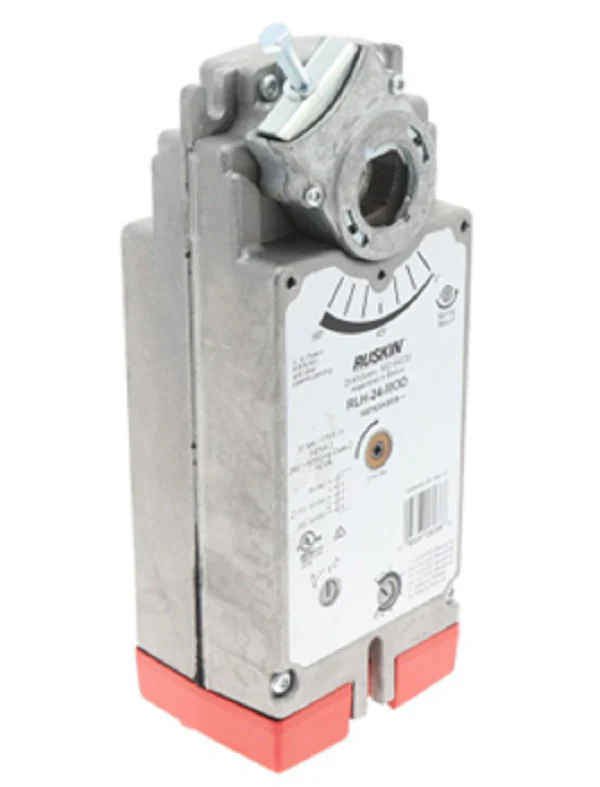

Honeywell MS7520K2006 Actuator
The Honeywell MS7520K2006 is a professional-grade 24V DC motor direct actuator engineered for precise modulating control of dampers and valves in complex air handling systems. As part of the RLH-24-MOD series, this direct-coupled actuator provides 175 lb-in (20 Nm) of torque, ensuring reliable movement for large-scale dampers without the need for additional linkages. This unit features a brushless DC motor and electronic stall sensing technology, which protects the motor from burnout at the end of the stroke, critical for maintaining system uptime in commercial building automation environments. With a 2-10 VDC or 4-20 mA control signal range, it allows for high-resolution positioning and seamless integration into HVAC control systems. The non-spring return design offers efficient power consumption while the self-centering shaft adapter accommodates various shaft sizes, making field installations and retrofits straightforward for technicians.
Technical Benefits for Contractors:
- High Torque Performance: Delivers 175 lb-in of torque to handle heavy-duty dampers and multi-leaf assemblies.
- Microprocessor Control: Utilizes smart electronics for precise positioning and increased energy efficiency.
- Flexible Installation: Features a self-centering shaft adapter and manual override for faster setup and testing.
- Broad Compatibility: Supports standard 2-10 VDC modulating signals common in modern building automation systems.
- Robust Housing: NEMA 2 rated enclosure provides protection for internal components in varied mechanical room conditions.
Frequently Asked Questions:
What is the primary control signal for the Honeywell MS7520K2006?
This actuator operates on a 2-10 VDC modulating signal, though it can be adapted for 4-20 mA applications using a 500-ohm resistor, providing versatile control options for different controllers.
Does this actuator require an external end switch to prevent motor burnout?
No, the Honeywell MS7520K2006 includes internal electronic stall sensing throughout its entire stroke, which automatically shuts off the motor when a stall condition is detected.
Can this unit be used for fail-safe or emergency return applications?
This specific model is a non-spring return actuator, meaning it will maintain its last position upon loss of power. For applications requiring a fail-safe position, a spring-return model should be specified.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $133.81
-65%$133.81
$46.83Honeywell MS7520K2006 Actuator
