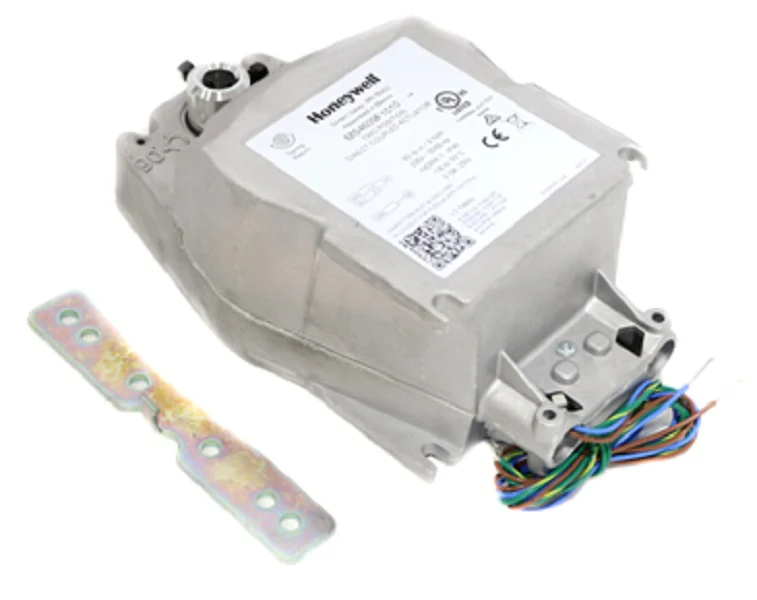

Honeywell MS4609F1010 Actuator
The Honeywell MS4609F1010 is a high-performance, fast-acting fire and smoke actuator engineered for reliable two-position control in critical HVAC life safety systems. Operating on a 230Vac power supply, this spring return actuator delivers a consistent 30 lb-in torque to ensure smoke dampers reach their intended position during emergency power loss or high-temperature events. Designed for versatility in the field, it features reversible mounting for clockwise or counter-clockwise rotation and includes a standard 1/2-inch round shaft adapter. With an ambient temperature rating of 0°F to 130°F and a humidity tolerance of 5-95% RH, this unit maintains operational integrity in demanding environments. This model serves as the direct replacement for MS4809F1012, allowing technicians to upgrade antiquated or failing units without extensive field modifications. Its die-cast aluminum housing and UL555S rating ensure it meets the rigorous standards required for smoke control applications and fire protection sequences.
Key Benefits
- Rapid Response Time: Engineered for 15-second motor drive and 15-second spring return to meet strict life safety timing requirements.
- Direct Replacement Logic: Specifically designed to replace the Honeywell MS4809F1012, minimizing downtime during retrofits.
- Enhanced Durability: Features a robust 230V actuator motor and mechanical spring return for fail-safe operation in high-heat scenarios.
- Flexible Installation: Self-centering shaft adapter and reversible mounting simplify alignment with fire and smoke dampers.
Common Questions
How do I change the rotation direction on the MS4609F1010?
Rotation direction is determined by which side of the actuator faces the damper shaft; simply flip the unit over to switch between clockwise (CW) and counter-clockwise (CCW) spring return.
Can this actuator be used in place of an older MS4809F1012 model?
Yes, the Honeywell MS4609F1010 is the manufacturer-specified direct replacement for the MS4809F1012, utilizing the same mounting footprint and technical specifications.
What is the maximum shaft size supported by this actuator?
The unit comes standard with a 1/2-inch round shaft adapter, which is the industry standard for most small to mid-sized smoke dampers.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
