Honeywell MN7505A2001 Actuator

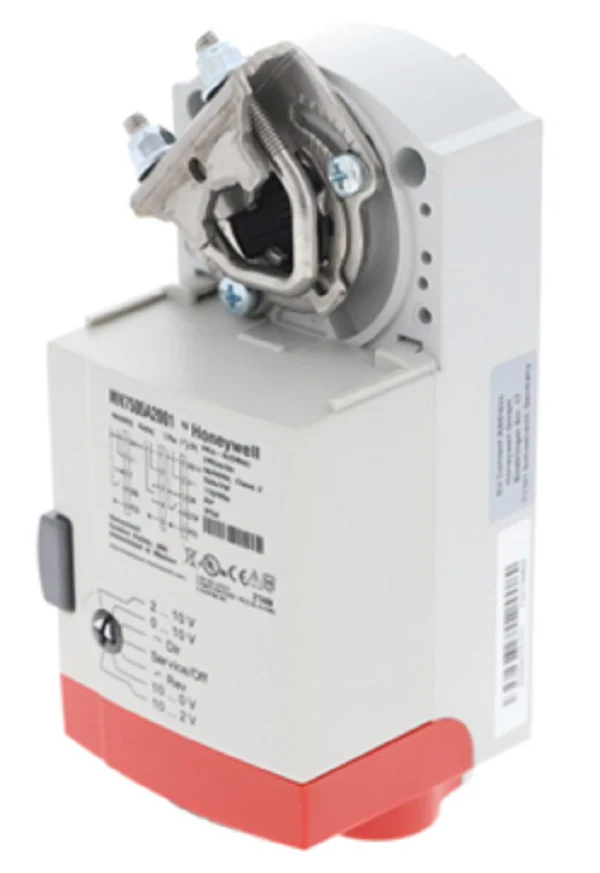

The Honeywell MN7505A2001 is a non-spring return direct coupled actuator engineered for precise control in HVAC zoning and VAV systems. This 24VAC/DC unit delivers 44 lb-in torque, utilizing a brushless DC motor with a magnetic clutch to eliminate the need for limit switches while protecting against mechanical stalls. Designed for high-performance building automation systems, it supports 0/2-10Vdc modulating, 4-20mA (with 500 Ohm resistor), and floating control signals. The direct shaft mounting design is compatible with 1/4" to 1/2" square or 3/8" to 5/8" round damper shafts, ensuring a secure fit and streamlined installation. With a nominal 95-second drive time and integral position feedback, this actuator provides technician-level reliability for commercial airflow regulation.
Key Benefits for Contractors
- Universal Control Compatibility: Seamlessly integrates with modulating, floating, or on/off control signals for maximum job site flexibility.
- Quiet Operations: Rated at less than 35 dB, making it ideal for noise-sensitive commercial HVAC environments.
- Manual Override: Features a declutch button for manual positioning during commissioning or system troubleshooting.
- Field Durability: Rated for 60,000 full stroke cycles and 1,000,000 reposition cycles with a plenum-rated enclosure.
- Complete Installation Kit: Includes mounting bracket, screws, shaft adapter, and water-tight strain relief fittings to reduce extra trips to the van.
Common Questions
Can this actuator handle 4-20mA signals?
Yes, the Honeywell MN7505A2001 supports 4-20mA control signals when used with the included 500 Ohm resistor.
How do I adjust the rotation limits?
The unit features adjustable mechanical range stops, allowing you to limit the 95-degree rotation to match specific damper stroke requirements.
Does this unit require a separate mounting bracket?
No, it is direct coupled for shaft mounting and includes the necessary anti-rotation bracket and hardware for a standard installation.
