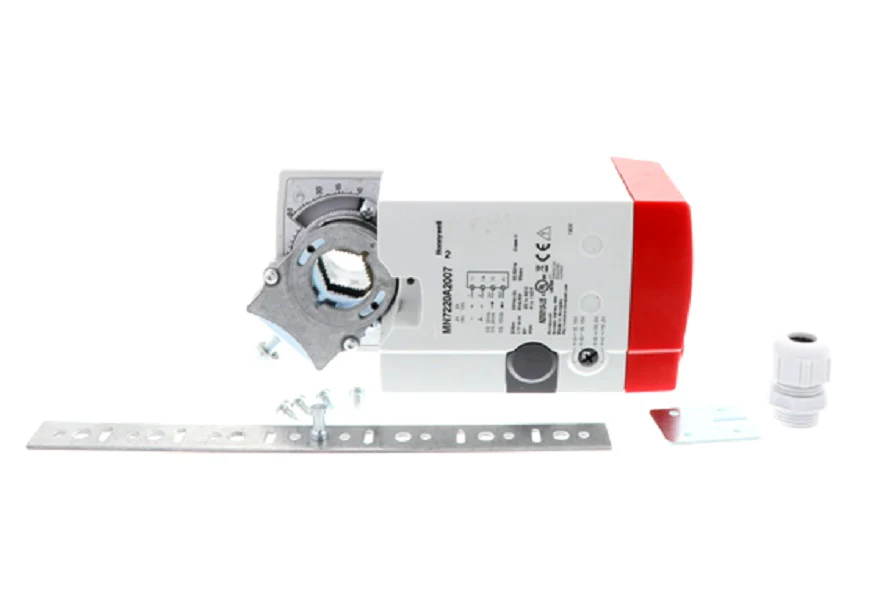

Honeywell MN7220A2007 Actuator
The Honeywell MN7220A2007 Actuator is a professional-grade, non-spring return direct coupled actuator engineered for high-precision modulating control in commercial HVACR systems. Delivering 175 lb-in torque, this analog unit is built for air dampers, VAV units, and ventilation flaps requiring robust positioning without a fail-safe return. It operates on 24VAC/VDC, accepting 0/2-10 VDC or 4-20 mA control signals with a 500-ohm resistor. The Honeywell MN7220A2007 features a brushless DC motor with a magnetic clutch for overload protection across its 95-degree rotational stroke. Professionals value its self-centering shaft adapter, which accommodates round shafts up to 1.06 inches and square shafts up to 11/16 inches. Its NEMA 2 rating and 60,000-cycle design life ensure reliability in demanding environments with ambient temperatures from -5°F to 140°F. Note that the MN7220A2007 is functionally identical to the MN7220A2007/U model.
Key Benefits for Contractors:
- Precision Modulation: Optimized for high-accuracy analog control with adjustable zero and span for field calibration.
- Simplified Installation: Features a self-centering shaft adapter and a detachable wiring cover to streamline field mounting.
- Quiet Performance: Low noise operation at less than 40 dB, making it suitable for noise-sensitive HVAC damper actuator applications.
- Manual Adjustments: Integrated manual declutch mechanism allows for immediate override and positioning during commissioning.
- Broad Compatibility: Supports a wide variety of damper shaft sizes and provides modulating 2-10VDC feedback for system monitoring.
Common Questions:
What is the difference between MN7220A2007 and MN7220A2007/U?
The "U" suffix typically designates a "Universal" trade-packaged version, but the technical specifications and performance ratings remain identical between the two models.
Can this actuator be used for 4-20 mA control?
Yes, the Honeywell MN7220A2007 supports a 4-20 mA signal when used with the included or specified 500-ohm resistor for signal conversion.
Is this unit suitable for plenum applications?
Yes, this specific model is UL Listed and plenum rated, meeting strict safety codes for installation within air-handling spaces.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
