Honeywell M9484F1007 Motor

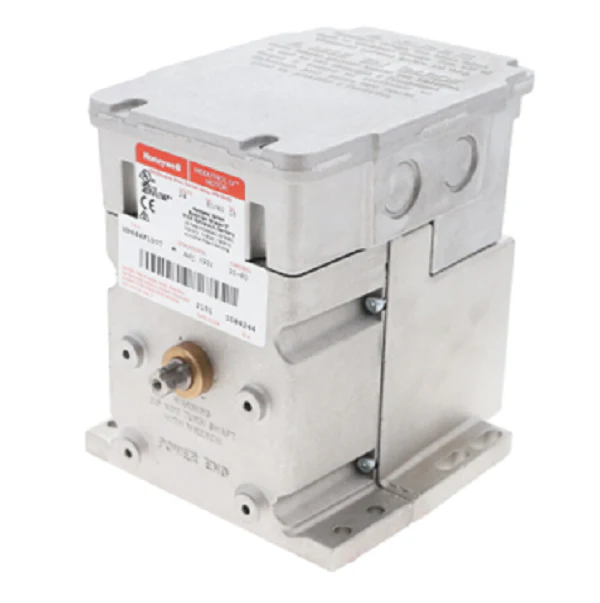

The Honeywell M9484F1007 is a high-torque Proportional Modutrol IV Motor engineered for precise control of dampers and valves in commercial HVAC systems. Operating on 24Vac, this actuator accepts a 135 Ohm input signal, providing 150 lb-in torque to handle heavy-duty linkages. Designed for reliability in extreme conditions, it maintains a mechanical stroke adjustable from 90 to 160 degrees, with 30-second timing for 90-degree travel. The unit features a double-ended 3/8" square shaft, allowing for versatile mounting configurations on either side of the motor. Rated for an ambient temperature range of -40 to 150°F, the M9484F1007 ensures stable operation in unconditioned mechanical rooms. This model includes 2 internal auxiliary switches for position feedback or interlocking secondary equipment. It is a direct functional equivalent to the M9484F1007/U, utilizing NEMA 3 housing protection for internal components while maintaining a standard footprint for legacy Honeywell Modutrol motor replacement.
Key Technical Benefits
- High-Torque Performance: Delivers 150 lb-in of torque, ensuring consistent movement of large dampers and valves without stalling.
- Electronic Proportional Control: Precise 135 Ohm series 90 control allows for granular modulation of airflow or fluid.
- Internal Auxiliary Switches: Dual SPDT switches provide easy field adjustment for end-of-stroke signaling or sequence-of-operation control.
- Dual-Ended Shaft: The 3/8 inch square shaft extends from both ends, simplifying Honeywell damper actuator installation in tight spaces.
- Environmental Resilience: Oil-immersed motor and gear train ensure lubrication and cooling in high-demand cycles and extreme temperatures.
Common Questions
Is the M9484F1007 compatible with older Series 90 controllers?
Yes, this motor is designed specifically for 135 Ohm proportional control circuits, making it the standard choice for upgrading or replacing legacy Series 90 Honeywell actuators.
Can I adjust the stroke of this Modutrol IV motor in the field?
The stroke is factory set, but the motor supports 90-degree and 160-degree timing configurations (30 sec and 60 sec respectively) to match the requirements of your specific valve or damper linkage.
Does this unit include the transformer?
The M9484F1007 is a 24Vac model and typically requires a separate Class 2 transformer if the control circuit does not already provide the necessary voltage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Honeywell M9484F1007 Motor
The Honeywell M9484F1007 is a high-torque Proportional Modutrol IV Motor engineered for precise control of dampers and valves in commercial HVAC systems. Operating on 24Vac, this actuator accepts a 135 Ohm input signal, providing 150 lb-in torque to handle heavy-duty linkages. Designed for reliability in extreme conditions, it maintains a mechanical stroke adjustable from 90 to 160 degrees, with 30-second timing for 90-degree travel. The unit features a double-ended 3/8" square shaft, allowing for versatile mounting configurations on either side of the motor. Rated for an ambient temperature range of -40 to 150°F, the M9484F1007 ensures stable operation in unconditioned mechanical rooms. This model includes 2 internal auxiliary switches for position feedback or interlocking secondary equipment. It is a direct functional equivalent to the M9484F1007/U, utilizing NEMA 3 housing protection for internal components while maintaining a standard footprint for legacy Honeywell Modutrol motor replacement.
Key Technical Benefits
- High-Torque Performance: Delivers 150 lb-in of torque, ensuring consistent movement of large dampers and valves without stalling.
- Electronic Proportional Control: Precise 135 Ohm series 90 control allows for granular modulation of airflow or fluid.
- Internal Auxiliary Switches: Dual SPDT switches provide easy field adjustment for end-of-stroke signaling or sequence-of-operation control.
- Dual-Ended Shaft: The 3/8 inch square shaft extends from both ends, simplifying Honeywell damper actuator installation in tight spaces.
- Environmental Resilience: Oil-immersed motor and gear train ensure lubrication and cooling in high-demand cycles and extreme temperatures.
Common Questions
Is the M9484F1007 compatible with older Series 90 controllers?
Yes, this motor is designed specifically for 135 Ohm proportional control circuits, making it the standard choice for upgrading or replacing legacy Series 90 Honeywell actuators.
Can I adjust the stroke of this Modutrol IV motor in the field?
The stroke is factory set, but the motor supports 90-degree and 160-degree timing configurations (30 sec and 60 sec respectively) to match the requirements of your specific valve or damper linkage.
Does this unit include the transformer?
The M9484F1007 is a 24Vac model and typically requires a separate Class 2 transformer if the control circuit does not already provide the necessary voltage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
