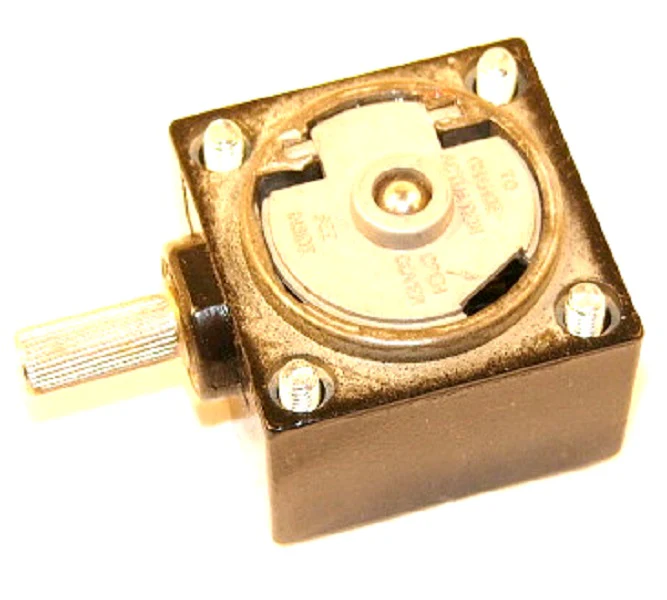

Honeywell LSZ1A Operating Head
The Honeywell LSZ1A Operating Head is a high-precision mechanical actuator component designed specifically for integration with the Honeywell HDLS series limit switches. Engineered for demanding industrial environments, this side rotary operating head provides the necessary mechanical interface for the LSXA3K explosion-proof switch and other compatible plug-in or non-plug-in limit switch bodies. Built with a rugged die-cast zinc housing, the LSZ1A ensures consistent actuation force and repeatable switching performance in heavy-duty HVACR and industrial control applications. This component is field-adjustable, allowing technicians to configure the operating head rotation for clockwise, counter-clockwise, or both directions to meet specific limit switch mounting requirements. When replacing worn or damaged industrial switch components, using an authentic Honeywell MICRO SWITCH replacement head is critical for maintaining the NEMA 1, 3, 4, 6, 13, and IP67 sealing integrity of the original enclosure.
Key Technical Benefits:
- Field-Adjustable Actuation: Enables seamless configuration for CW, CCW, or dual-direction operation depending on the application’s mechanical requirements.
- NEMA Rated Protection: Maintains the environmental sealing standards of HDLS limit switches, protecting internal contacts from dust, oil, and water ingress.
- Rugged Die-Cast Construction: Designed to withstand high-vibration environments and repeated mechanical cycling common in commercial HVACR systems.
- Direct Compatibility: Engineered as a drop-in replacement for the LSXA3K series, ensuring precise physical alignment and electrical timing.
- Standardized Mounting: Utilizes the industry-standard Honeywell LSZ mounting pattern for fast field replacement and reduced downtime.
Common Technical Questions:
Which limit switch bodies are compatible with the LSZ1A?
The LSZ1A is primarily designed for use with the Honeywell LSX explosion-proof and HDLS heavy-duty limit switch lines, specifically matching the LSXA3K configuration.
Does the LSZ1A include the operating lever?
No, the LSZ1A is the operating head assembly only. Actuating levers (roller levers, rods, or offsets) must be ordered separately based on the specific mechanical interface needed for your installation.
Can the head orientation be changed?
Yes, the operating head can be rotated and locked in 90-degree increments to accommodate various actuator arm positions and clearance constraints within the equipment housing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
