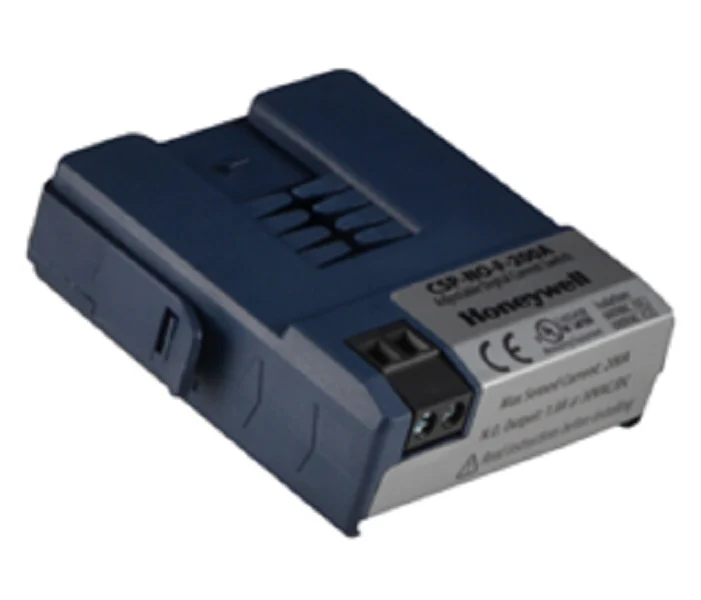

Honeywell CSP-NO-F-200A Core
The Honeywell CSP-NO-F-200A is a high-performance split-core current switch engineered for precise AC current monitoring in commercial and industrial HVACR applications. Operating within a 0.35-200A current sensing range, this normally open (N/O) device is the industry-standard direct replacement for RIBXGA and CP-O-F models, offering a seamless retrofit solution for existing control loops. The split-core architecture allows for installation around insulated conductors without disconnecting existing wiring, significantly reducing field labor during sensor updates or motor status implementation. Designed for zero-crossing detection, it provides reliable feedback for monitoring motor run-time, belt loss, or mechanical failure on fans and pumps. The rugged design operates effectively in environments up to 95% non-condensing humidity and integrates effortlessly into a Building Management System (BMS) or PLC via its solid-state output. This unit is essential for preventative maintenance programs, ensuring accurate electrical load status reporting across critical mechanical systems.
Key Benefits- Retrofit Ready: The split-core design allows for rapid installation on established 600VAC max lines without requiring system downtime or wire cutting.
- Universal Compatibility: Engineered as a drop-in replacement for obsolete CP-O-F and RIBXGA current sensors, maintaining identical footprint and function.
- Reliable Monitoring: Features fixed-threshold sensing ideal for proving status on constant-volume motors, pumps, and exhaust fans.
- Easy Mounting: Includes a versatile mounting bracket compatible with standard DIN rails or surface-mount configurations.
- Precision Performance: Utilizes zero-crossing detection technology to ensure clean signal output and long-term switching reliability in high-cycle applications.
Is the Honeywell CSP-NO-F-200A compatible with variable frequency drives (VFDs)?
While this model excels at fixed-speed motor monitoring, it is frequently used on the line side of controllers to verify overall power status. For load-side VFD monitoring with varying frequencies, always verify that the minimum turn-on current of 0.35A is met.
Can I use this to replace a solid-core sensor?
Yes. This split-core model provides the same N/O switching logic as older solid-core units but simplifies the physical installation by snapping directly over the conductor.
Does this switch require an external power supply?
No, the Honeywell CSP-NO-F-200A is a self-powered current switch, drawing the energy needed to operate its internal circuitry directly from the induced current of the monitored conductor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $79.30
-65%$79.30
$27.75Honeywell CSP-NO-F-200A Core
The Honeywell CSP-NO-F-200A is a high-performance split-core current switch engineered for precise AC current monitoring in commercial and industrial HVACR applications. Operating within a 0.35-200A current sensing range, this normally open (N/O) device is the industry-standard direct replacement for RIBXGA and CP-O-F models, offering a seamless retrofit solution for existing control loops. The split-core architecture allows for installation around insulated conductors without disconnecting existing wiring, significantly reducing field labor during sensor updates or motor status implementation. Designed for zero-crossing detection, it provides reliable feedback for monitoring motor run-time, belt loss, or mechanical failure on fans and pumps. The rugged design operates effectively in environments up to 95% non-condensing humidity and integrates effortlessly into a Building Management System (BMS) or PLC via its solid-state output. This unit is essential for preventative maintenance programs, ensuring accurate electrical load status reporting across critical mechanical systems.
Key Benefits- Retrofit Ready: The split-core design allows for rapid installation on established 600VAC max lines without requiring system downtime or wire cutting.
- Universal Compatibility: Engineered as a drop-in replacement for obsolete CP-O-F and RIBXGA current sensors, maintaining identical footprint and function.
- Reliable Monitoring: Features fixed-threshold sensing ideal for proving status on constant-volume motors, pumps, and exhaust fans.
- Easy Mounting: Includes a versatile mounting bracket compatible with standard DIN rails or surface-mount configurations.
- Precision Performance: Utilizes zero-crossing detection technology to ensure clean signal output and long-term switching reliability in high-cycle applications.
Is the Honeywell CSP-NO-F-200A compatible with variable frequency drives (VFDs)?
While this model excels at fixed-speed motor monitoring, it is frequently used on the line side of controllers to verify overall power status. For load-side VFD monitoring with varying frequencies, always verify that the minimum turn-on current of 0.35A is met.
Can I use this to replace a solid-core sensor?
Yes. This split-core model provides the same N/O switching logic as older solid-core units but simplifies the physical installation by snapping directly over the conductor.
Does this switch require an external power supply?
No, the Honeywell CSP-NO-F-200A is a self-powered current switch, drawing the energy needed to operate its internal circuitry directly from the induced current of the monitored conductor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
