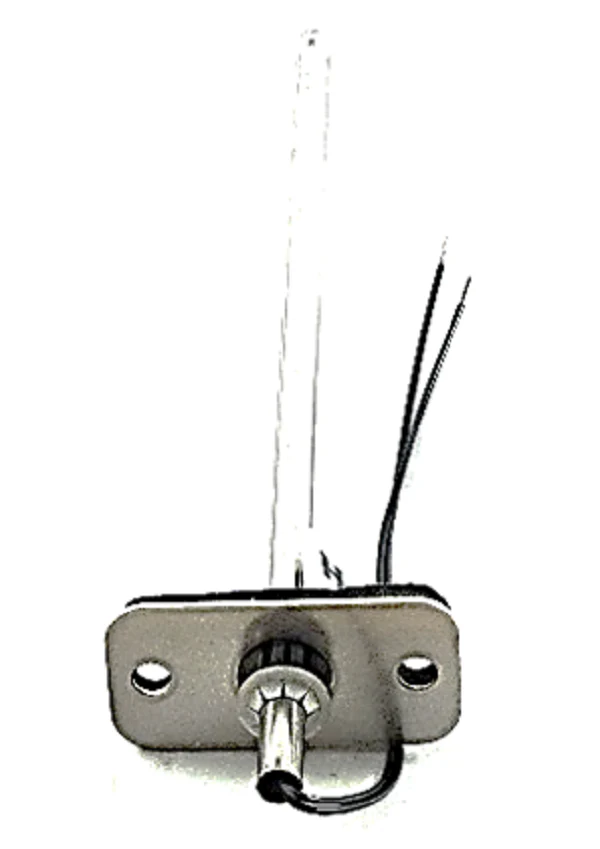

Honeywell C7046C1000 Temperature Sensor
The Honeywell C7046C1000 is an industrial-grade discharge air temperature sensor engineered for precise thermal monitoring within HVAC electronic control systems. This 3K ohm NTC thermistor operates with a negative temperature coefficient, providing a nominal resistance of 3,000 ohms at 77?F to ensure high-accuracy feedback for primary or secondary sensing applications. Built with a rugged 8-inch aluminum insertion probe, the unit is designed to withstand turbulent airflow and duct or plenum environments without the risk of corrosion or degradation. The solid-state design ensures that the internal components remain completely unaffected by dust, dirt, or grease accumulation, maintaining fast-reacting performance over a 40?F to 150?F operating temperature range. This sensor is fully compatible with Honeywell W973, W7210, and T775 series controllers, requiring no field calibration or complex settings. Installation is streamlined via an integral mounting flange for flat surfaces or direct attachment to a 2x4 inch junction box, providing the flexible insertion length necessary for accurate average air temperature sampling.
Key Benefits
- High-Precision Monitoring: Utilizes a 3K ohm @ 77?F NTC element for reliable resistance-to-temperature conversion in discharge air applications.
- Durable Construction: Features a rugged 8-inch aluminum probe that resists environmental wear in high-velocity ductwork.
- Maintenance-Free Design: Solid-state components are immune to dust and airborne contaminants, eliminating the need for periodic calibration.
- Versatile Mounting: Includes an integral flange for surface mounting and is sized for standard 2x4 inch junction box integration.
- Wide Compatibility: Seamlessly integrates as a secondary sensor for HVAC economizers and electronic control systems across multiple Honeywell platforms.
Common Questions
What is the resistance profile of the Honeywell C7046C1000?This sensor utilizes a 3K ohm Negative Temperature Coefficient (NTC) thermistor, meaning resistance decreases as discharge air temperature increases. It is calibrated to 3,000 ohms at a reference temperature of 77?F (25?C).
Can this sensor be used for mixed air sensing?Yes, while primarily labeled for discharge air, its 8-inch insertion length and 40-150?F range make it ideal for mixed air temperature monitoring in HVAC duct systems and economizer logic modules.
Does the C7046C1000 require shielded cable for installation?For standard HVACR runs, 6-inch leadwires are provided. However, when installed near large inductive loads or motors, using shielded cable is a best practice to prevent electrical noise from interfering with the thermistor signal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $64.44
-65%$64.44
$22.55Honeywell C7046C1000 Temperature Sensor
The Honeywell C7046C1000 is an industrial-grade discharge air temperature sensor engineered for precise thermal monitoring within HVAC electronic control systems. This 3K ohm NTC thermistor operates with a negative temperature coefficient, providing a nominal resistance of 3,000 ohms at 77?F to ensure high-accuracy feedback for primary or secondary sensing applications. Built with a rugged 8-inch aluminum insertion probe, the unit is designed to withstand turbulent airflow and duct or plenum environments without the risk of corrosion or degradation. The solid-state design ensures that the internal components remain completely unaffected by dust, dirt, or grease accumulation, maintaining fast-reacting performance over a 40?F to 150?F operating temperature range. This sensor is fully compatible with Honeywell W973, W7210, and T775 series controllers, requiring no field calibration or complex settings. Installation is streamlined via an integral mounting flange for flat surfaces or direct attachment to a 2x4 inch junction box, providing the flexible insertion length necessary for accurate average air temperature sampling.
Key Benefits
- High-Precision Monitoring: Utilizes a 3K ohm @ 77?F NTC element for reliable resistance-to-temperature conversion in discharge air applications.
- Durable Construction: Features a rugged 8-inch aluminum probe that resists environmental wear in high-velocity ductwork.
- Maintenance-Free Design: Solid-state components are immune to dust and airborne contaminants, eliminating the need for periodic calibration.
- Versatile Mounting: Includes an integral flange for surface mounting and is sized for standard 2x4 inch junction box integration.
- Wide Compatibility: Seamlessly integrates as a secondary sensor for HVAC economizers and electronic control systems across multiple Honeywell platforms.
Common Questions
What is the resistance profile of the Honeywell C7046C1000?This sensor utilizes a 3K ohm Negative Temperature Coefficient (NTC) thermistor, meaning resistance decreases as discharge air temperature increases. It is calibrated to 3,000 ohms at a reference temperature of 77?F (25?C).
Can this sensor be used for mixed air sensing?Yes, while primarily labeled for discharge air, its 8-inch insertion length and 40-150?F range make it ideal for mixed air temperature monitoring in HVAC duct systems and economizer logic modules.
Does the C7046C1000 require shielded cable for installation?For standard HVACR runs, 6-inch leadwires are provided. However, when installed near large inductive loads or motors, using shielded cable is a best practice to prevent electrical noise from interfering with the thermistor signal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
