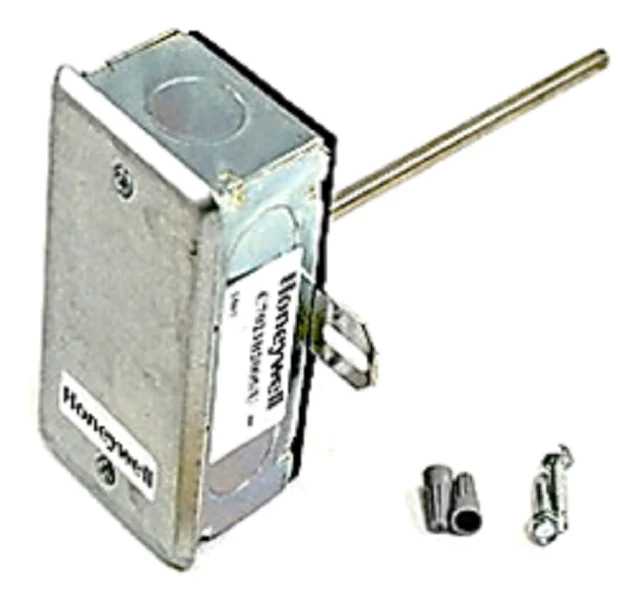

Honeywell C7023B2005 Temperature Sensor
The Honeywell C7023B2005 is a professional-grade 10K Ohm NTC Type III thermistor designed for precise duct air temperature sensing in commercial HVAC and Building Automation Systems (BAS). Featuring a 6-inch stainless steel insertion probe, this sensor provides reliable resistance output to Honeywell WEBs-AX I/O modules and other compatible electronic controllers. The solid-state thermistor element is housed in a durable metallic junction box with a NEMA 1 enclosure rating, protecting internal connections from dust and mechanical damage. Engineered for demanding environments, the C7023B2005 operates effectively within a wide range of -40?F to 250?F (-40?C to 121?C). This duct temperature sensor is a non-adjustable, high-accuracy component that ensures optimal air handling unit performance by delivering consistent data to the controller without the need for frequent field calibration. For technicians looking for a Honeywell 10K Type 3 thermistor, this model is a standard for replacement and new installations in 1/2-inch conduit systems.
Key Benefits- High-Accuracy Sensing: The 10K Ohm Type III NTC curriculum provides a standard resistance curve for seamless integration with WEBs-AX controllers.
- Industrial Durability: Equipped with a 6-inch stainless steel probe and a rugged metallic handy box enclosure for long-term field stability.
- Versatile Operating Range: Rated for extreme temperatures from -40?F up to 250?F, suitable for both heating and cooling discharge air monitoring.
- Simplified Installation: Features standard knockouts for 1/2-inch conduit and a direct duct-mount design for rapid deployment by mechanical contractors.
Is the Honeywell C7023B2005 compatible with Type II 10K sensors?
No, this model uses a 10K Ohm Type III curve. Always verify your controller's input requirements, as Type II and Type III thermistors have different resistance-temperature characteristics and are not interchangeable without recalibrating the BAS software.
What is the insertion depth for this duct sensor?
The C7023B2005 features a fixed 6-inch insertion probe, which is the standard length for providing an accurate average temperature reading in medium-sized supply or return air ducts.
Does this sensor require a separate transmitter for a 4-20mA signal?
Yes, the C7023B2005 is a resistive-only sensor. It outputs change in OHMS based on temperature. If your system requires a 4-20mA or 0-10VDC signal, you would need a separate temperature transmitter or a different sensor model with integrated signal conditioning.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
