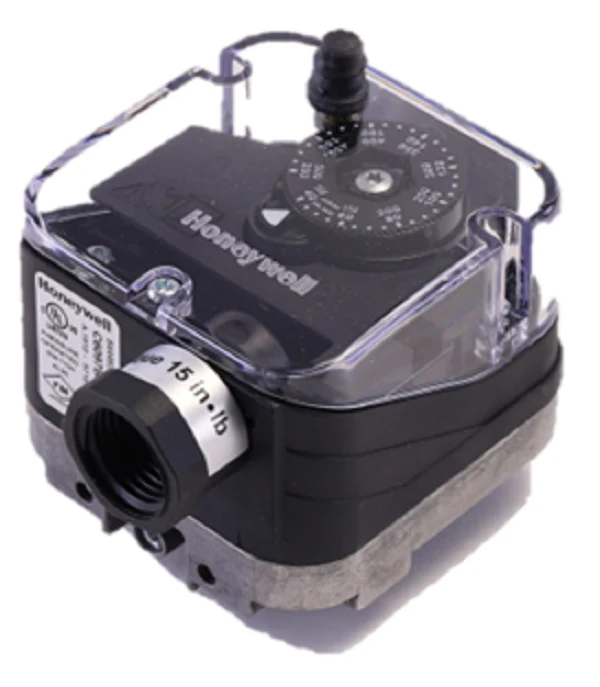

Honeywell C6097B3051 Pressure Switch
The Honeywell C6097B3051 is a high-performance diaphragm-actuated safety-limit switch engineered for precision monitoring of gas and air pressures. This gas pressure switch is a direct replacement for the 803113201 and features a manual reset mechanism that locks off once the set point is reached. Operating on a break-on-rise logic, the Honeywell C6097B3051 interrupts the NC-to-COM connection when pressure increases beyond your adjusted threshold, making it the industry standard for high-pressure limit applications in industrial burners and boiler systems.
Designed for versatile field integration, this unit includes 1/4" NPT mounting and is compatible with natural gas, LP gas, biogas, and air. With an adjustable range of 1.5-7 PSI (40" - 200" W.C.), it ensures stable operation through an integral vent limiter and a surge orifice that dampens sudden fluctuations to prevent nuisance tripping. The rugged IP65 protection class enclosure and transparent scaleplate cover allow for reliable performance and easy visual set-point verification in demanding mechanical rooms.
Key Benefits:- Precise Safety Control: Breaks the control circuit specifically on pressure rise, preventing unsafe operating conditions in gas-fired equipment.
- Manual Reset Security: Ensures a technician must inspect the system before restarting, providing an essential safety layer for industrial burner control systems.
- Broad Media Compatibility: Rated for use with air, flue gas, and various fuel gases, including liquid propane and natural gas.
- Robust Environmental Protection: Features an IP65-rated housing and an additional filter pad to protect internal silver contacts from contaminants.
- Seamless Installation: Direct NPT mount and compact 0.70 lb design allow for quick integration into existing Honeywell integrated valve trains or standalone piping.
What is the difference between the C6097A and C6097B series?
The C6097A models are designed to break the circuit on a pressure fall (low pressure), whereas the Honeywell C6097B3051 breaks the circuit on a pressure rise (high pressure).
Does this switch require an external vent line?
All C6097 models feature an integral 0.2mm vent limiter. In most jurisdictions, this eliminates the need for a dedicated vent line to the atmosphere, provided local codes accept integral limiters for the specific application.
How do I verify the current set point?
The unit is equipped with a removable transparent cover and a calibrated setting dial. For the most accurate calibration, contractors should use a manometer at the 1/4" NPT test port while adjusting the hand wheel.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
