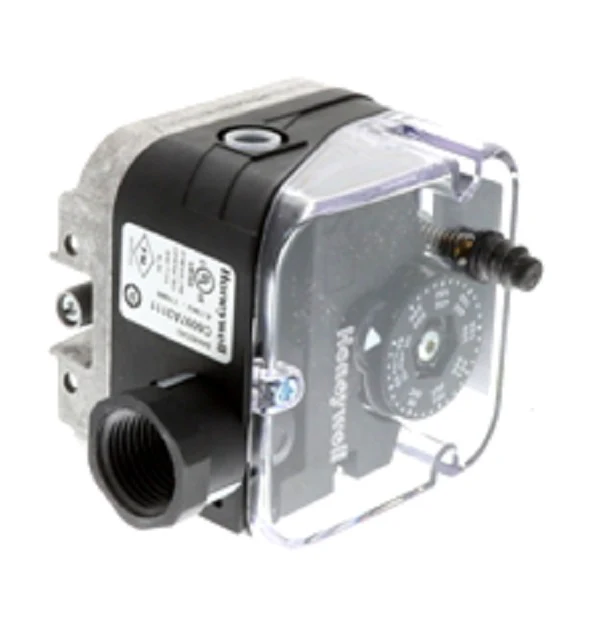

Honeywell C6097A3111 Switch
The Honeywell C6097A3111 is a commercial-grade pressure switch engineered for precise monitoring of air, natural gas, or LP gas in industrial burner systems. This gas pressure limit switch operates within a 1.5 to 7 PSI range and features a manual reset mechanism that triggers on a break-fall (pressure drop) condition. Built for rigorous duty, it utilizes a 1/4 in. NPT connection for direct mounting to the valve train or manifold. The SPDT switching logic ensures reliable integration with flame safety controllers like the RM7800 series. Technicians frequently specify the C6097A3111 for high-pressure applications where meeting NFPA 85 or CSD-1 requirements is mandatory. Its rugged die-cast construction provides environmental protection for internal components, while the vented diaphragm design eliminates the need for separate vent piping in typical indoor installations. Use this HVAC safety switch when your sequence of operation demands a manual restart after a low-pressure disruption to ensure combustion integrity.
Key Benefits
- Manual Reset Functionality: Critical for safety-rated circuits requiring human intervention after a low-pressure event.
- Wide Medium Compatibility: Specifically rated for air, natural gas, and liquefied petroleum (LP) gases.
- Precise Setpoint Adjustment: Features a clear scale for accurate 1.5 to 7 PSI calibration on-site.
- NPT Threading: Standard 1/4 in. NPT mount allows for seamless installation on existing gas trains.
- Industrial Durability: Robust housing designed to withstand the high-temperature environments typical of boiler rooms.
Common Questions
How do I wire the C6097A3111 for a low-gas pressure lockout circuit?
The SPDT contacts should be wired to the controller's safety interlock loop; the manual reset ensures the circuit remains open until the technician verifies gas pressure and manually resets the switch.
Can this pressure switch be mounted in any orientation?
For peak accuracy, these switches are ideally mounted in a vertical position, as diaphragm sensitivity can be affected by gravity in horizontal orientations.
Does the C6097A3111 require external vent lines?
Under many local codes, the internal diaphragm vent is sufficient, but always check specific AHV requirements for gas train venting in confined spaces.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
