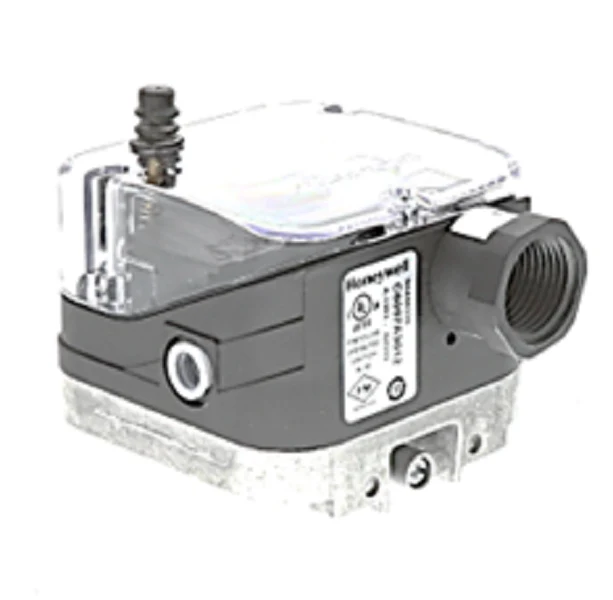

Honeywell C6097A3012 Switch
The Honeywell C6097A3012 is a high-accuracy pressure switch engineered for supervising gas or air pressure across commercial and industrial burner systems. Featuring a 1-20" WC scale range, this manual reset device is configured to break on fall, making it a critical safety component in FM-approved or insurance-regulated combustion trains. The unit utilizes a 1/4" NPT connection for seamless field installation and serves as the direct replacement for 52259-001U. As a veterans’ choice for gas pressure limit switches, it manages high or low pressure thresholds with precision, ensuring the internal diaphragms react to slight variances in atmospheric or line pressure. This Honeywell pressure switch is built for durability in harsh mechanical rooms, providing the reliable electrical break needed to shut down burners if pressure drops below the set point, preventing hazardous flame instability or equipment damage.
Technical Specifications and Benefits
- Broad Operating Range: Adjustable from 1 to 20 inches water column to accommodate diverse manifold pressures.
- Safety Compliance: Designed for manual reset operation, ensuring a technician inspects the system before a restart.
- Rugged Construction: Compact design with a durable housing suitable for high-vibration environments.
- Retrofit Ready: Directly replaces legacy Honeywell and OEM models including 52259-001U without piping modifications.
- NEMA Rated: Provides robust protection for electrical contacts against dust and moisture common in boiler rooms.
Common Questions
Is the C6097A3012 compatible with LP or Natural Gas?
Yes, this switch is designed for use with natural gas, liquid propane (LP), and air. It is standard for monitoring gas burner fuel pressure in many industrial configurations.
Can this be used as a high-pressure limit or a low-pressure limit?
This specific model is a break on fall switch, meaning it is typically utilized as a low gas pressure switch to ensure there is enough pressure for stable combustion.
What is the maximum surge pressure for this Honeywell switch?
While the operating range is up to 20" WC, these units are typically rated for a maximum surge pressure of 5 PSI; however, consistently exceeding the operating range can damage the internal diaphragm.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
