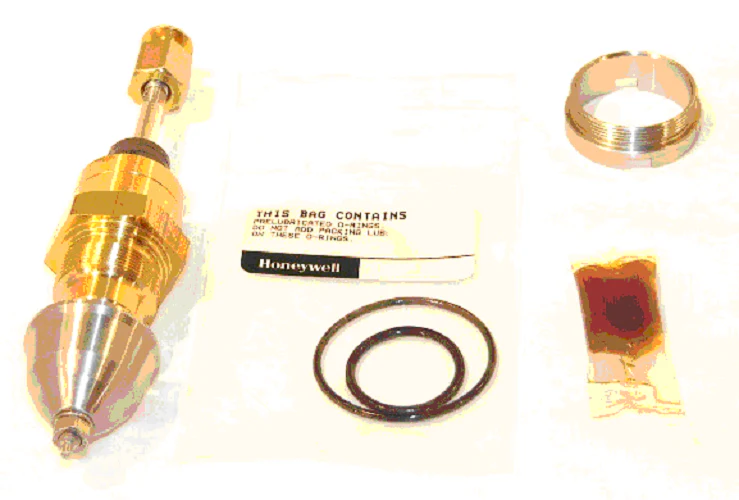

Honeywell 0903429A Rebuild Kit
When your Honeywell V5011N2071 globe valve shows signs of seat leakage or packing wear, the Honeywell 0903429A rebuild kit provides the comprehensive solution for in-line field servicing. This kit, which is identical to the Honeywell 0903429A/U universal version, is engineered specifically for the 1-1/4 inch linear flow steam valve series. As a veteran technician knows, pulling a valve from the line is a last resort; this kit allows for a full internal restoration without disturbing the piping. It includes a precision-machined stainless steel plug assembly, a replacement seat ring, and a complete packing cartridge featuring spring-loaded, carbon-fiber reinforced PTFE V-rings to stop stem leaks dead. You also get the stem button, repack kit, and all necessary o-rings to ensure a zero-leak seal. Specifically designed for steam service up to 100 psi at 337°F, this Honeywell valve repair kit restores original factory performance and 0.05% Cv leakage ratings.
Key Benefits- Complete Internal Overhaul: Includes the stem button, packing nut, and seat ring to address both external leaks and internal bypass.
- Steam-Rated Durability: Features a stainless steel plug assembly designed to withstand high-temperature saturated steam applications.
- Simplified Maintenance: Facilitates in-line valve repair, eliminating the need to de-solder or unthread the valve body from the system.
- Precision Control: Restores the linear flow characteristic essential for accurate temperature regulation in steam-fed heat exchangers.
Is the 0903429A compatible with V5013N three-way valves?
No, this specific kit is configured for the V5011N2071 two-way globe valve. While some packing components overlap, the plug and seat assembly are unique to the two-way steam model.
Do I need a special tool to replace the seat ring?
Yes, for the 1-1/4 inch V5011N body, a Honeywell seat tool (part number 32003941-001) is recommended to properly torque the new seat ring without marring the brass body.
How do I know if I need a rebuild kit versus just a repack kit?
If you are experiencing "hunting" or inability to shut off flow completely (internal leakage), you need the full 0903429A rebuild kit. If moisture is only escaping from the stem, a repack kit might suffice, but a full rebuild is best practice for long-term reliability.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $482.47
-65%$482.47
$168.86Honeywell 0903429A Rebuild Kit
When your Honeywell V5011N2071 globe valve shows signs of seat leakage or packing wear, the Honeywell 0903429A rebuild kit provides the comprehensive solution for in-line field servicing. This kit, which is identical to the Honeywell 0903429A/U universal version, is engineered specifically for the 1-1/4 inch linear flow steam valve series. As a veteran technician knows, pulling a valve from the line is a last resort; this kit allows for a full internal restoration without disturbing the piping. It includes a precision-machined stainless steel plug assembly, a replacement seat ring, and a complete packing cartridge featuring spring-loaded, carbon-fiber reinforced PTFE V-rings to stop stem leaks dead. You also get the stem button, repack kit, and all necessary o-rings to ensure a zero-leak seal. Specifically designed for steam service up to 100 psi at 337°F, this Honeywell valve repair kit restores original factory performance and 0.05% Cv leakage ratings.
Key Benefits- Complete Internal Overhaul: Includes the stem button, packing nut, and seat ring to address both external leaks and internal bypass.
- Steam-Rated Durability: Features a stainless steel plug assembly designed to withstand high-temperature saturated steam applications.
- Simplified Maintenance: Facilitates in-line valve repair, eliminating the need to de-solder or unthread the valve body from the system.
- Precision Control: Restores the linear flow characteristic essential for accurate temperature regulation in steam-fed heat exchangers.
Is the 0903429A compatible with V5013N three-way valves?
No, this specific kit is configured for the V5011N2071 two-way globe valve. While some packing components overlap, the plug and seat assembly are unique to the two-way steam model.
Do I need a special tool to replace the seat ring?
Yes, for the 1-1/4 inch V5011N body, a Honeywell seat tool (part number 32003941-001) is recommended to properly torque the new seat ring without marring the brass body.
How do I know if I need a rebuild kit versus just a repack kit?
If you are experiencing "hunting" or inability to shut off flow completely (internal leakage), you need the full 0903429A rebuild kit. If moisture is only escaping from the stem, a repack kit might suffice, but a full rebuild is best practice for long-term reliability.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
