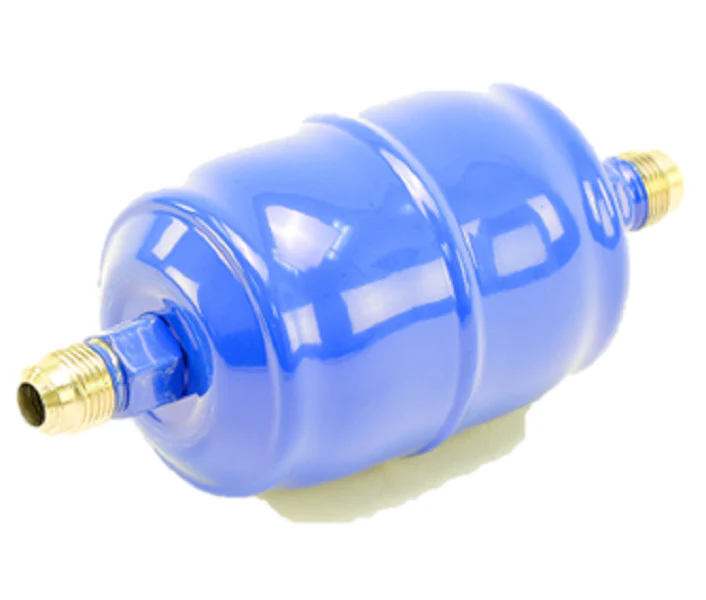

Henry Technologies SH-9105 Strainer
The Henry Technologies SH-9105 is a high-performance refrigerant oil strainer engineered to protect compressors and oil level regulators from system debris. Featuring a 3/8" SAE flare connection and a robust 100-mesh stainless steel screen, this unit provides 11 square inches of filter area with particle retention down to 150 microns. Designed as the direct replacement for S9105, the SH-9105 is compatible with HFC, HCFC, HFO, and A2L refrigerants. Its carbon steel shell and plated steel connections ensure durability in both low and high-pressure oil management systems. With a maximum working pressure of 700 PSI and a wide operating temperature range, this 3/8 inch flare strainer maintains high flow capacity with minimal pressure drop. It is typically installed in the oil return line, upstream of the mechanical oil level regulator, to prevent dirt ingress from compromising float needle valves. For technicians servicing commercial refrigeration racks, this OEM-quality component is essential for maintaining long-term system reliability.
Key Benefits- Direct S9105 Replacement: Drop-in compatibility simplifies maintenance and reduces downtime during component swaps.
- Superior Filtration: The 100 mesh stainless steel screen effectively captures contaminants to prevent compressor scoring and regulator blockages.
- Broad Refrigerant Compatibility: Suitable for use with conventional and next-generation A2L refrigerants and their associated oils.
- High Pressure Rating: Rated for up to 700 PSI, making it versatile for various HVACR refrigeration system architectures.
Is the SH-9105 compatible with POE oil systems?
Yes, while it is compatible with HFC/POE combinations, it is often recommended to use a dedicated oil filter-drier in systems with high moisture or acid potential due to the scavenging nature of POE oil.
What is the correct installation orientation for the SH-9105?
The strainer must be installed following the flow direction arrow on the shell. It is standard practice to install isolation valves on both sides to facilitate easy screen cleaning or replacement.
Can this be used in CO2 transcritical systems?
The standard SH-9105 is rated for 700 PSI. For transcritical CO2 applications, verify the specific pressure requirements of your system as high-pressure CO2 variants are typically required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $60.66
-65%$60.66
$21.23Henry Technologies SH-9105 Strainer
The Henry Technologies SH-9105 is a high-performance refrigerant oil strainer engineered to protect compressors and oil level regulators from system debris. Featuring a 3/8" SAE flare connection and a robust 100-mesh stainless steel screen, this unit provides 11 square inches of filter area with particle retention down to 150 microns. Designed as the direct replacement for S9105, the SH-9105 is compatible with HFC, HCFC, HFO, and A2L refrigerants. Its carbon steel shell and plated steel connections ensure durability in both low and high-pressure oil management systems. With a maximum working pressure of 700 PSI and a wide operating temperature range, this 3/8 inch flare strainer maintains high flow capacity with minimal pressure drop. It is typically installed in the oil return line, upstream of the mechanical oil level regulator, to prevent dirt ingress from compromising float needle valves. For technicians servicing commercial refrigeration racks, this OEM-quality component is essential for maintaining long-term system reliability.
Key Benefits- Direct S9105 Replacement: Drop-in compatibility simplifies maintenance and reduces downtime during component swaps.
- Superior Filtration: The 100 mesh stainless steel screen effectively captures contaminants to prevent compressor scoring and regulator blockages.
- Broad Refrigerant Compatibility: Suitable for use with conventional and next-generation A2L refrigerants and their associated oils.
- High Pressure Rating: Rated for up to 700 PSI, making it versatile for various HVACR refrigeration system architectures.
Is the SH-9105 compatible with POE oil systems?
Yes, while it is compatible with HFC/POE combinations, it is often recommended to use a dedicated oil filter-drier in systems with high moisture or acid potential due to the scavenging nature of POE oil.
What is the correct installation orientation for the SH-9105?
The strainer must be installed following the flow direction arrow on the shell. It is standard practice to install isolation valves on both sides to facilitate easy screen cleaning or replacement.
Can this be used in CO2 transcritical systems?
The standard SH-9105 is rated for 700 PSI. For transcritical CO2 applications, verify the specific pressure requirements of your system as high-pressure CO2 variants are typically required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
